Electricity demand forecasting

Electricity demand forecasting with numpyro_forecast

This notebook ports the blog post Electricity Demand Forecast: Dynamic Time-Series Model to the numpyro_forecast package. The TensorFlow Probability case study Structural Time Series Modeling Case Studies: Atmospheric CO2 and Electricity Demand forecasts this electricity demand series with their structural time series module tfp.sts, modeling the temperature effect as a linear regression. Here we extend that example: we keep temperature as a covariate but model its effect as a varying coefficient through a (Hilbert Space approximation) Gaussian process, which captures the non-linear relationship between temperature and demand. We are not using the Gaussian process to extrapolate over time, but to capture the non-linear covariate effect, as in Time-Varying Regression Coefficients via Hilbert Space Gaussian Process Approximation.

Instead of hand-writing the NumPyro model and a bespoke predictive loop, we express it as a ForecastingModel, fit it with Forecaster, and score train and test with evaluate_forecast. Throughout the package, time lives at axis -2 and the observation dimension at -1, and the forecast horizon is inferred from the covariates being longer than the data.

Prepare notebook

%load_ext autoreload
%autoreload 2
%load_ext jaxtyping
%jaxtyping.typechecker beartype.beartype
%config InlineBackend.figure_format = "retina"

from typing import cast

import arviz as az
import jax.numpy as jnp
import matplotlib.dates as mdates
import matplotlib.pyplot as plt
import numpy as np
import numpyro
import numpyro.distributions as dist
import pandas as pd
import preliz as pz
from jax import random
from numpyro.contrib.hsgp.approximation import hsgp_matern
from numpyro.infer import Predictive, init_to_feasible
from numpyro.infer.autoguide import AutoNormal
from numpyro.optim import Adam

from numpyro_forecast import Forecaster, ForecastingModel, evaluate_forecast
from numpyro_forecast.datasets import load_victoria_electricity
from numpyro_forecast.typing import Array
from numpyro_forecast.util import periodic_repeat

az.style.use("arviz-darkgrid")
plt.rcParams["figure.figsize"] = [12, 7]
plt.rcParams["figure.dpi"] = 100
plt.rcParams["figure.facecolor"] = "white"

numpyro.set_host_device_count(n=4)

rng_key = random.PRNGKey(seed=42)

Load data

We load the data through the package helper load_victoria_electricity, which returns the demand series (shape (time, 1), the package convention) and the aligned temperature series. We reference the original comment from the TensorFlow Probability example:

“Victoria electricity demand dataset, as presented at https://otexts.com/fpp2/scatterplots.html and downloaded from https://github.com/robjhyndman/fpp2-package/blob/master/data/elecdaily.rda . This series contains the first eight weeks (starting Jan 1). The original dataset was half-hourly data; here we’ve downsampled to hourly data by taking every other timestep.”

demand, temperature = load_victoria_electricity()
duration = demand.shape[0]

demand_values = np.asarray(demand[:, 0])
temperature_values = np.asarray(temperature)

demand_dates = np.array("2014-01-01", dtype="datetime64[h]") + np.arange(duration)
demand_loc = mdates.WeekdayLocator(byweekday=mdates.WE)
demand_fmt = mdates.DateFormatter("%a %b %d")

print("demand shape:", demand.shape)
print("temperature shape:", temperature.shape)
demand shape: (1344, 1)
temperature shape: (1344,)

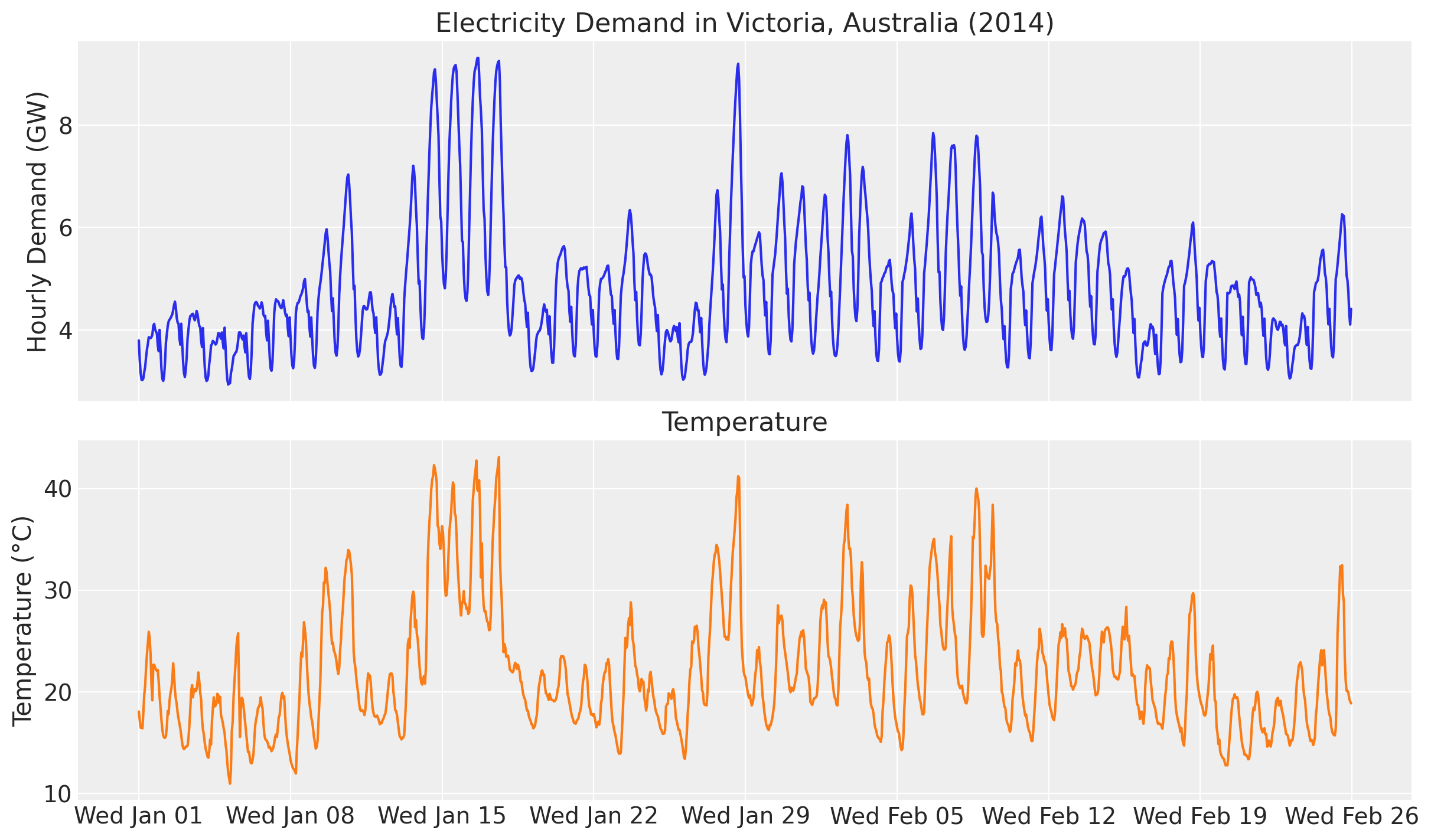

Let’s visualize the data:

fig, ax = plt.subplots(nrows=2, ncols=1, sharex=True, sharey=False, layout="constrained")
ax[0].plot(demand_dates, demand_values, c="C0")
ax[0].set(
    title="Electricity Demand in Victoria, Australia (2014)",
    ylabel="Hourly Demand (GW)",
)
ax[1].plot(demand_dates, temperature_values, c="C1")
ax[1].set(title="Temperature", ylabel="Temperature (°C)")
ax[1].xaxis.set_major_locator(demand_loc)
ax[1].xaxis.set_major_formatter(demand_fmt)

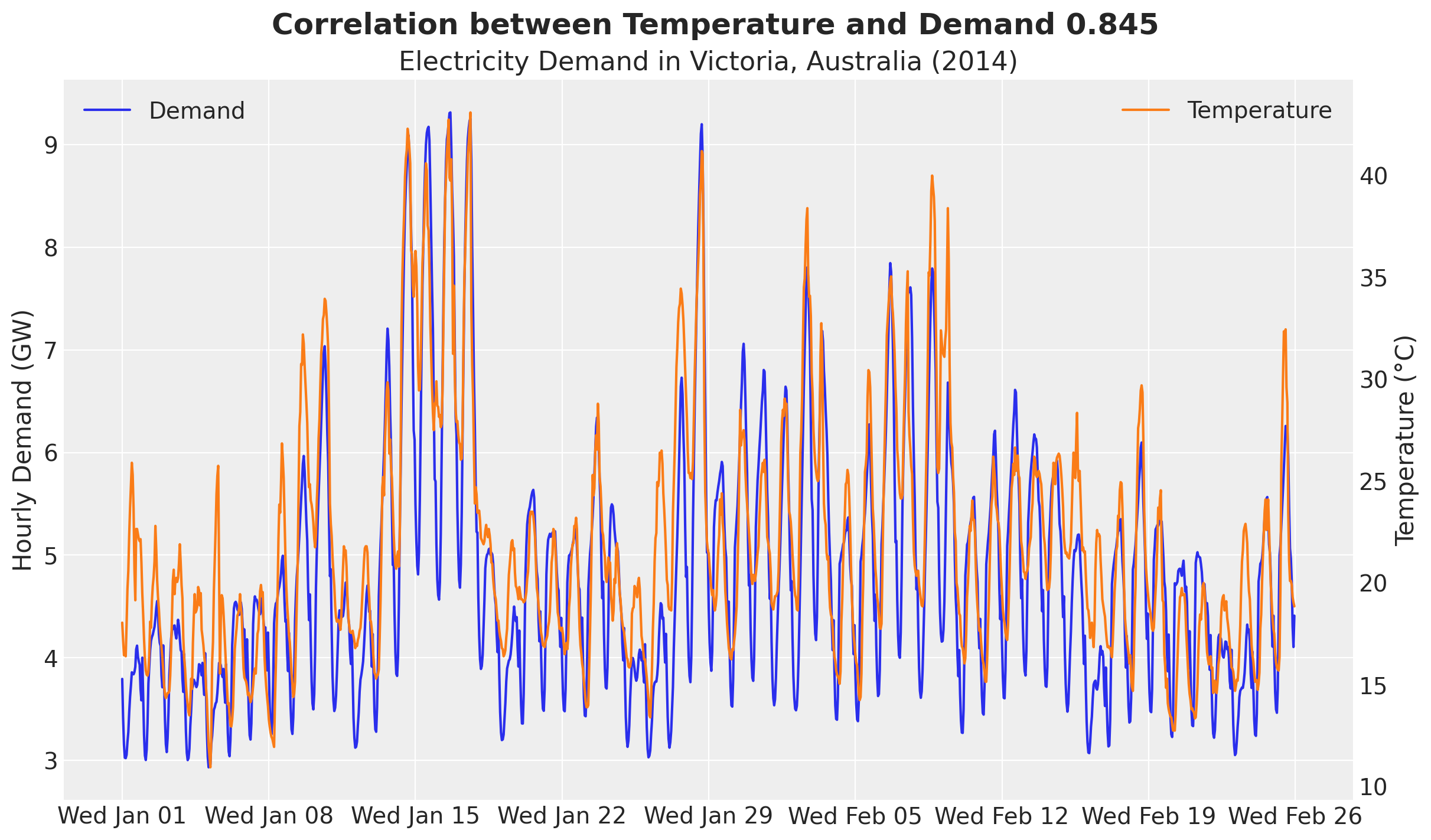

We clearly see an overall positive correlation between temperature and electricity demand. This can be particularly seen when we plot both demand and temperature in the same (twin) axis.

fig, ax = plt.subplots()
ax_twinx = ax.twinx()
ax.plot(demand_dates, demand_values, c="C0", label="Demand")
ax.set(
    title="Electricity Demand in Victoria, Australia (2014)",
    ylabel="Hourly Demand (GW)",
)
ax_twinx.plot(demand_dates, temperature_values, c="C1", label="Temperature")
ax_twinx.set(ylabel="Temperature (°C)")
ax.xaxis.set_major_locator(demand_loc)
ax.xaxis.set_major_formatter(demand_fmt)
ax_twinx.grid(None)
ax.legend(loc="upper left")
ax_twinx.legend(loc="upper right")
corr = np.corrcoef(temperature_values, demand_values)[0, 1]
fig.suptitle(
    f"Correlation between Temperature and Demand {corr:.3f}",
    fontsize=18,
    fontweight="bold",
);

Besides forecasting, we would also like to understand the relationship between temperature and electricity demand. A good first starting point is to generate a scatter plot of temperature and demand.

fig, ax = plt.subplots()
ax.scatter(temperature_values, demand_values)
ax.set(title="Demand vs Temperature", xlabel="Temperature (°C)", ylabel="Demand (GW)");

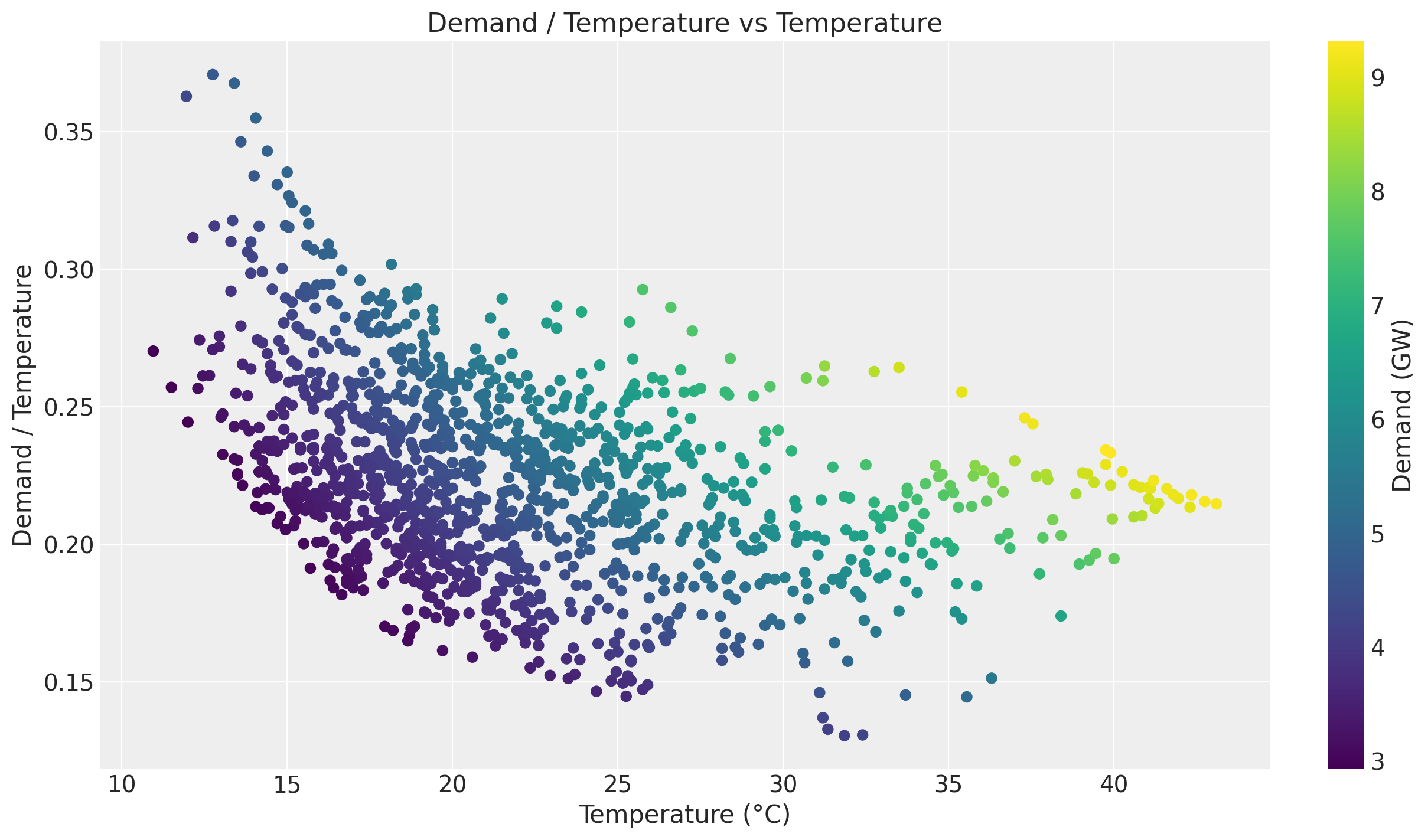

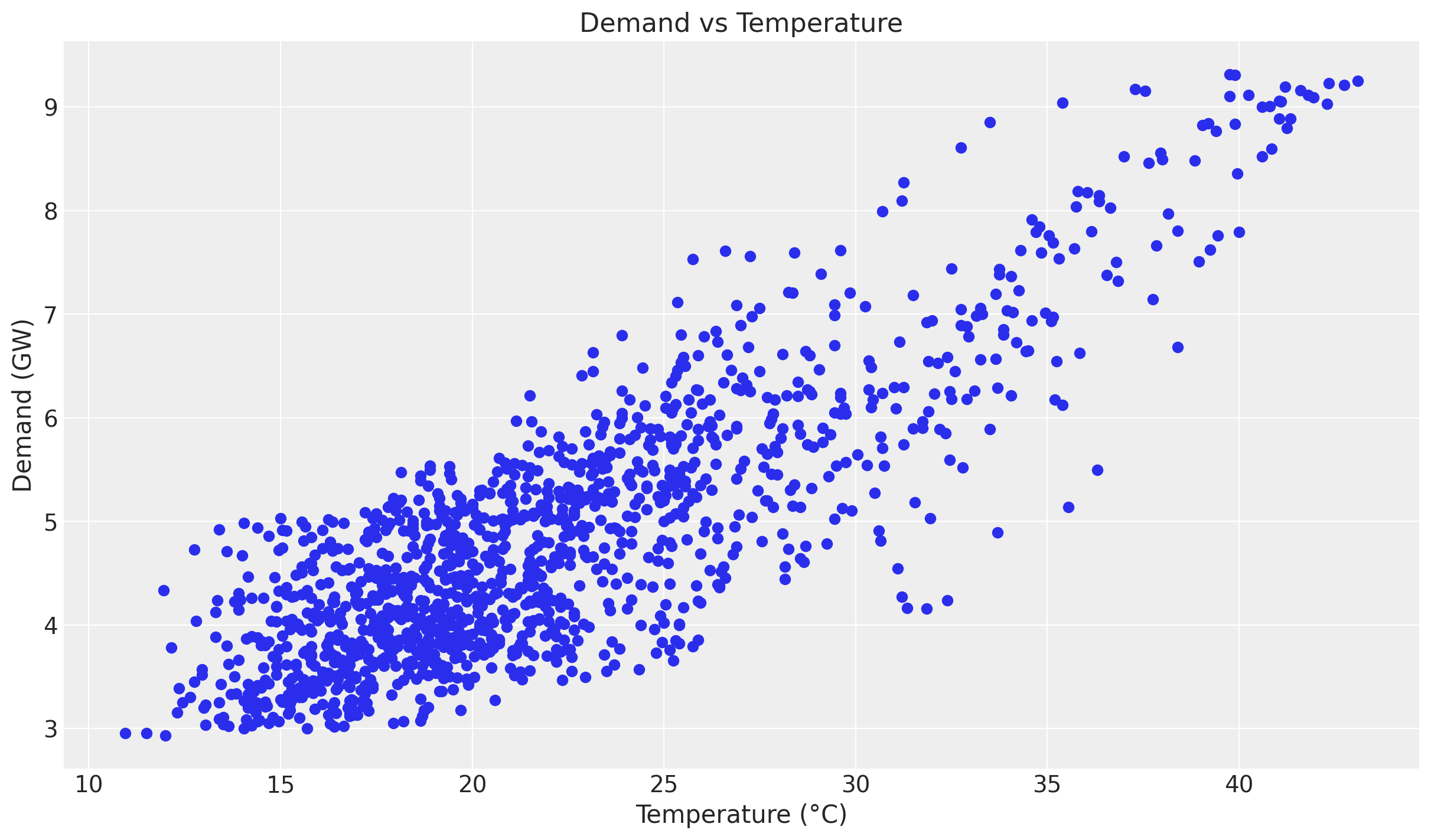

Even though we see a positive relationship between temperature and demand, the relationship is not linear. We can see this by plotting the ratio of demand to temperature.

fig, ax = plt.subplots()
ax.scatter(temperature_values, demand_values / temperature_values, c=demand_values, cmap="viridis")
cbar = fig.colorbar(ax.collections[0], ax=ax)
cbar.set_label("Demand (GW)")
ax.set(
    title="Demand / Temperature vs Temperature",
    xlabel="Temperature (°C)",
    ylabel="Demand / Temperature",
);

Of course there are strong seasonal effects hidden in these plots. Therefore we want to use a model that can capture the temperature effect while controlling for other factors.

Training and test data

We split the data as in the original example, holding out the last two weeks. In addition, we build the exogenous inputs the model needs and pack them into a single covariates array with time at axis -2: the temperature and a day_of_week index. The forecast horizon is inferred later from covariates being longer than the training data.

num_forecast_steps = 24 * 7 * 2  # two weeks
t_train = duration - num_forecast_steps

data_train = demand[:t_train]
data_test = demand[t_train:]

dates_train = demand_dates[:t_train]
dates_test = demand_dates[t_train:]

day_of_week = np.array([d.weekday() for d in demand_dates.astype("datetime64[D]").astype(object)])

covariates = jnp.stack([temperature, jnp.asarray(day_of_week, dtype=jnp.float32)], axis=-1)
covariates_train = covariates[:t_train]

print("data_train shape:", data_train.shape)
print("data_test shape:", data_test.shape)
print("covariates shape:", covariates.shape)
data_train shape: (1008, 1)
data_test shape: (336, 1)
covariates shape: (1344, 2)

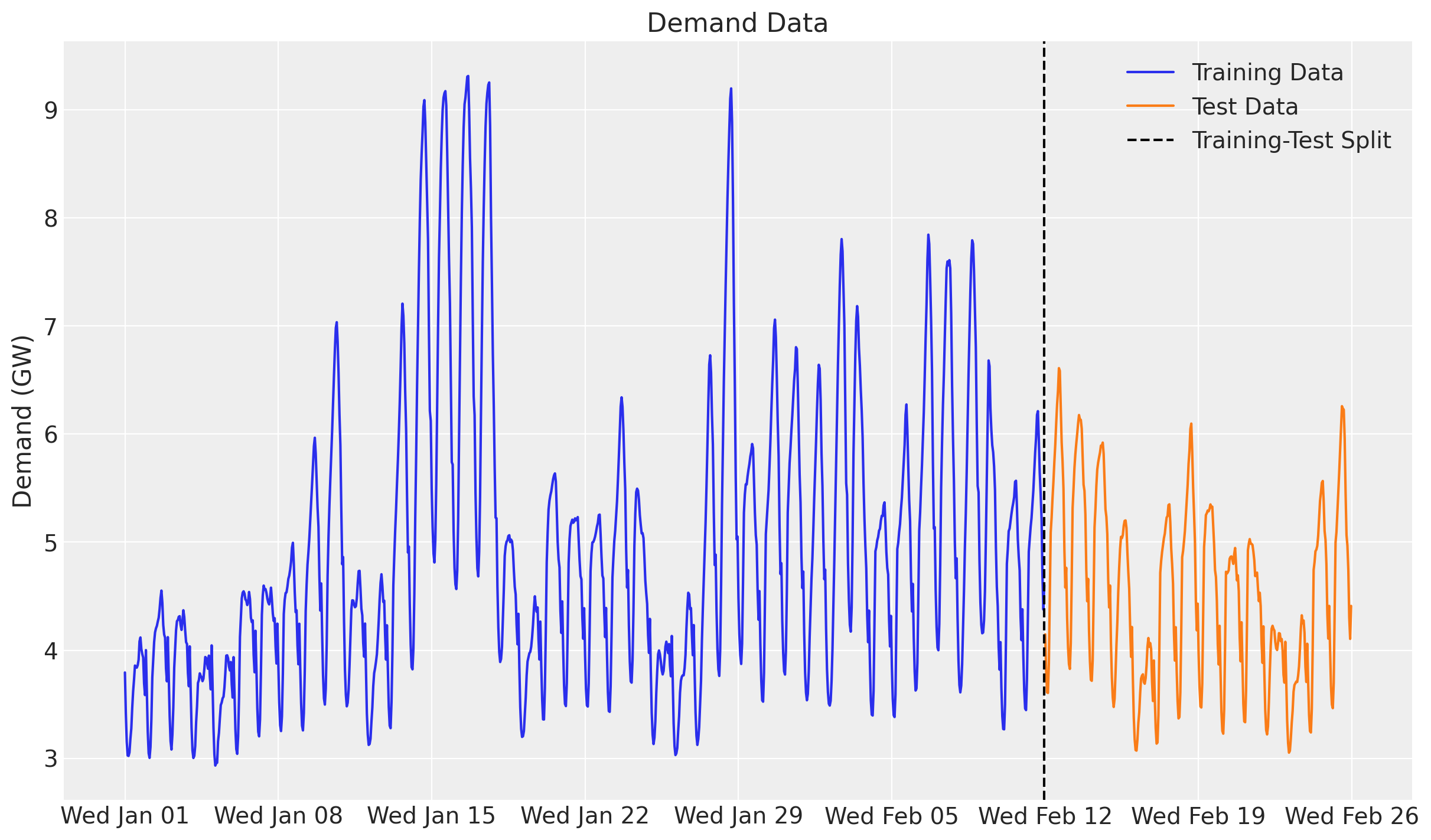

We can now visualize the training and test split of the demand.

fig, ax = plt.subplots()
ax.plot(dates_train, np.asarray(data_train[:, 0]), label="Training Data")
ax.plot(dates_test, np.asarray(data_test[:, 0]), label="Test Data")
ax.axvline(x=dates_train[-1], color="black", linestyle="--", label="Training-Test Split")
ax.set(title="Demand Data", ylabel="Demand (GW)")
ax.legend()
ax.xaxis.set_major_locator(demand_loc)
ax.xaxis.set_major_formatter(demand_fmt)

Model specification

Here is the modeling strategy, re-expressed as a numpyro_forecast ForecastingModel:

  • A linear-in-features model predicts demand from temperature and two seasonal effects, hour of day and day of week, both modeled with Zero-Sum Normal distributions.
  • A Matérn 5/2 kernel models the temperature effect on demand through the Hilbert Space Gaussian Process (HSGP) approximation from NumPyro (see here).
  • The noise scale varies with the temperature.
  • A Student-t distribution models the residual error.

A ForecastingModel reads its exogenous inputs from covariates and must call self.predict exactly once with a zero-centered noise distribution and the deterministic mean. Because there is no random-walk latent here (the temperature and calendar are known over the whole horizon), the model is purely covariate-driven and self.predict handles both the in-sample fit and the forecast suffix, including the per-timestep noise scale.

GP prior parameters

One key component of specifying Gaussian processes is to set the length scale and amplitude parameters. We use an optimization strategy (preliz) to set these parameters by assuming they both come from an Inverse-Gamma distribution while specifying the support.

# For the amplitude, we set the values inspired on the range of the demand / temperature
# ratio above.
amplitude_params, ax = pz.maxent(pz.InverseGamma(), lower=0.1, upper=0.5)

# As we want to use the GP to model the temperature effect, we need to set the length
# scale parameter. We expect these effects to be seen at the order of units or tens of
# units, so we expect the length scale to be between 3 and 10.
length_scale_params, ax = pz.maxent(pz.InverseGamma(), lower=3, upper=10)

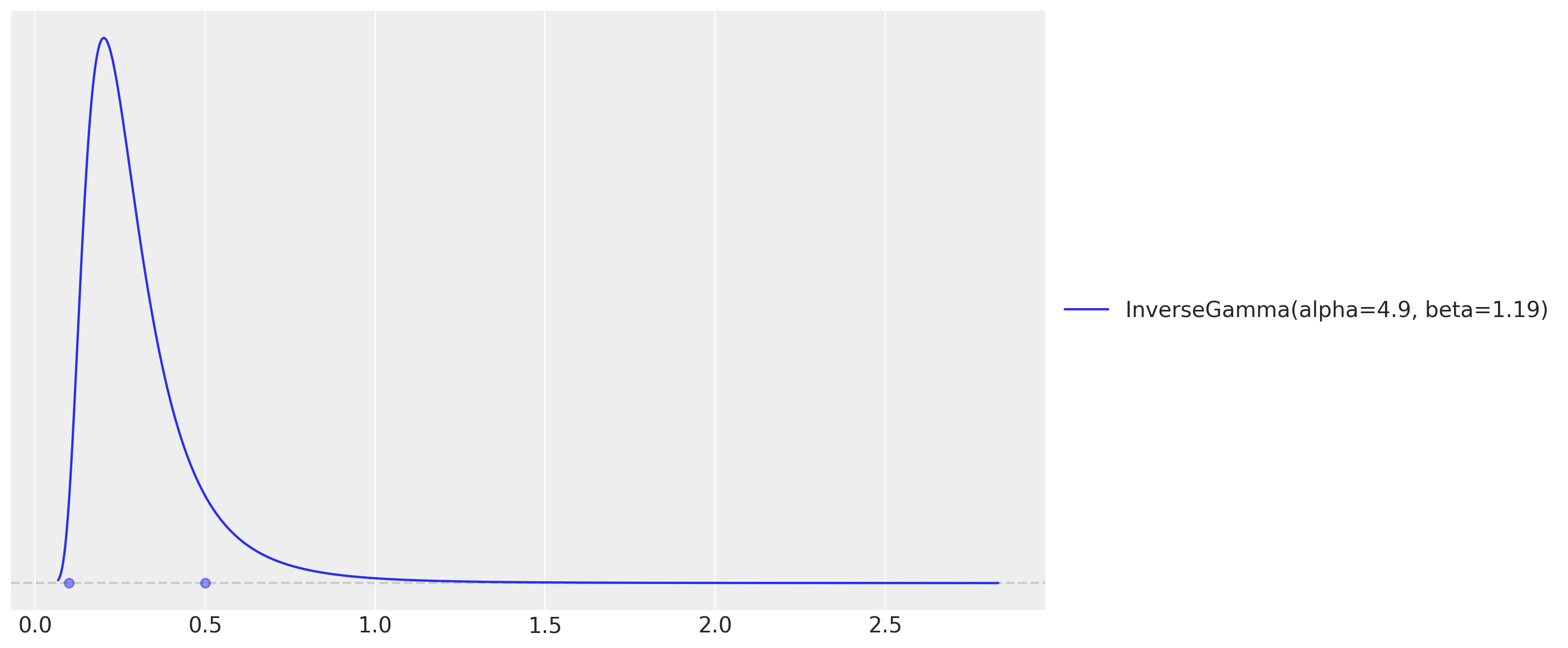

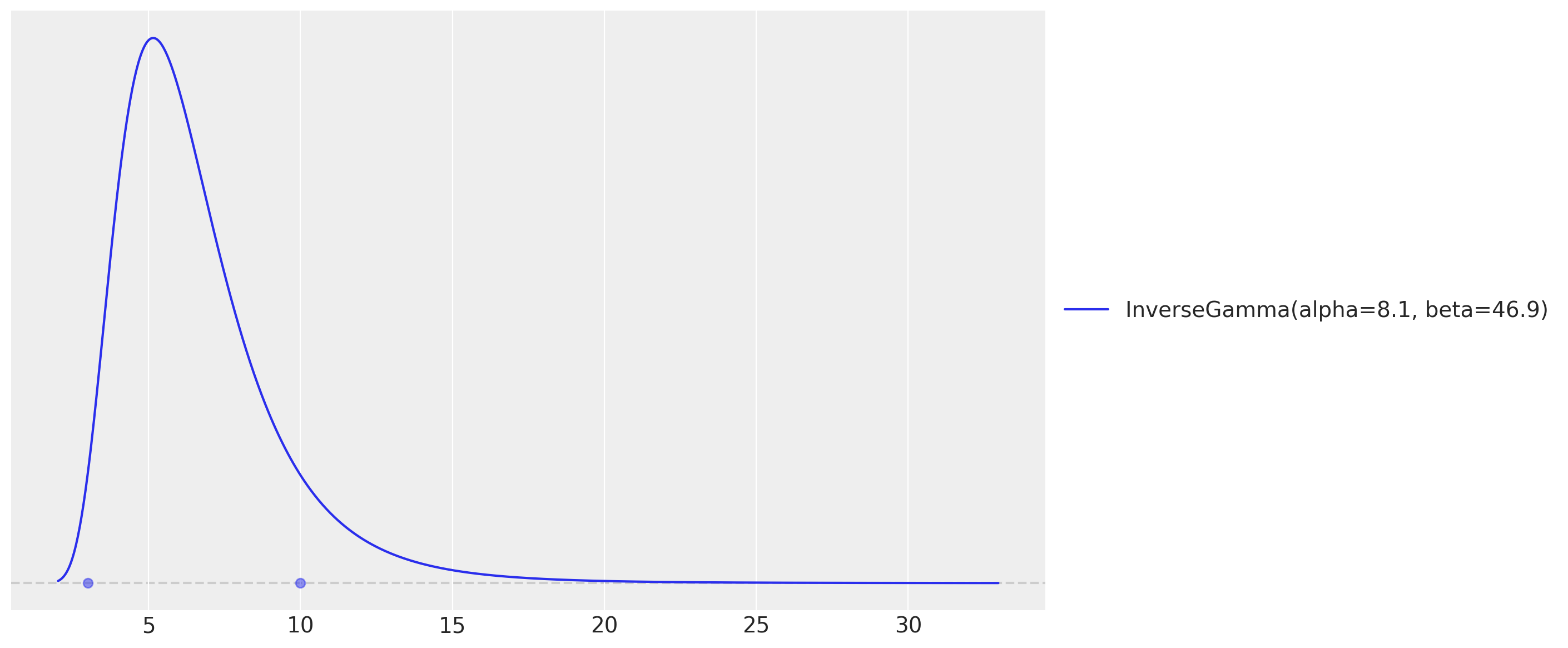

These two maxent calls return the Inverse-Gamma parameters we plug into the model below (the hour-of-day effect is tiled over the horizon with the package helper periodic_repeat).

class ElectricityForecaster(ForecastingModel):
    """HSGP temperature effect plus hour/day seasonality with a Student-t likelihood."""

    def __init__(self, ell: float = 55.0, m: int = 25) -> None:
        super().__init__()
        self.ell = ell
        self.m = m

    def model(self, zero_data: Array | None, covariates: Array) -> None:
        """Define the electricity-demand forecasting model."""
        duration = covariates.shape[-2]
        temperature = covariates[..., 0]
        day_of_week = covariates[..., 1].astype("int32")

        # Intercept.
        intercept = numpyro.sample("intercept", dist.Normal(loc=0.0, scale=2.0))

        # GP parameters (amplitude and length-scale priors are the preliz maxent fits).
        alpha = numpyro.sample("alpha", dist.InverseGamma(concentration=6.66, rate=1.57))
        length_scale = numpyro.sample(
            "length_scale", dist.InverseGamma(concentration=11.0, rate=62.2)
        )
        scale_factor = numpyro.sample("scale", dist.HalfNormal(scale=0.5))
        # Degrees of freedom for the Student-t likelihood.
        nu = numpyro.sample("nu", dist.Gamma(concentration=8.0, rate=3.0))

        # Non-linear temperature effect as a Matérn 5/2 HSGP. ``hsgp_matern`` is
        # annotated for float hyperparameters, so we cast the sampled scalars.
        beta_temperature = hsgp_matern(
            x=temperature,
            nu=5 / 2,
            alpha=cast("float", alpha),
            length=cast("float", length_scale),
            ell=self.ell,
            m=self.m,
        )
        numpyro.deterministic("beta_temperature", beta_temperature)

        # Hour-of-day effect, tiled over the horizon with periodic_repeat.
        scale_hour_of_day = numpyro.sample("scale_hour_of_day", dist.HalfNormal(scale=0.5))
        hour_of_day_effect = numpyro.sample(
            "hour_of_day_effect",
            dist.ZeroSumNormal(scale=scale_hour_of_day, event_shape=(24,)),
        )
        hour_of_day_effect = periodic_repeat(hour_of_day_effect, duration, axis=-1)

        # Day-of-week effect, indexed by the calendar covariate.
        scale_day_of_week = numpyro.sample("scale_day_of_week", dist.HalfNormal(scale=0.5))
        day_of_week_effect = numpyro.sample(
            "day_of_week_effect",
            dist.ZeroSumNormal(scale=scale_day_of_week, event_shape=(7,)),
        )

        # Expected demand and a temperature-dependent Student-t noise scale.
        mu = (
            beta_temperature * temperature
            + intercept
            + hour_of_day_effect
            + jnp.take(day_of_week_effect, day_of_week)
        )
        scale = scale_factor * jnp.sqrt(temperature)

        self.predict(dist.StudentT(df=nu, loc=0.0, scale=scale[..., None]), mu[..., None])


model = ElectricityForecaster()

A ForecastingModel instance is itself the NumPyro model callable (covariates, data=None), so we can render its structure directly.

numpyro.render_model(
    model,
    model_args=(covariates_train, data_train),
    render_distributions=True,
    render_params=True,
)

Prior predictive checks

Before we fit the model, let’s visualize the prior predictive distribution. A ForecastingModel instance is a plain NumPyro model callable, so we can hand it to Predictive directly. We draw the bands with ArviZ’s plot_lm, which computes the \(50\%\) and \(94\%\) HDI internally; since the time axis is a datetime64 array we pass it as matplotlib date numbers (mdates.date2num) and restore the date formatter on the returned axis.

prior_predictive = Predictive(model, num_samples=2_000, return_sites=["obs"])
rng_key, rng_subkey = random.split(rng_key)
prior_obs = prior_predictive(rng_subkey, covariates_train)["obs"][..., 0]

xnum_train = mdates.date2num(dates_train)

idata_prior = az.from_dict(
    {
        "prior_predictive": {"obs": np.asarray(prior_obs)[None]},
        "observed_data": {"obs": np.asarray(data_train[:, 0])},
        "constant_data": {"date": xnum_train},
    },
    coords={"time": xnum_train},
    dims={"obs": ["time"], "date": ["time"]},
)
pc = az.plot_lm(
    idata_prior,
    y="obs",
    x="date",
    group="prior_predictive",
    ci_kind="hdi",
    ci_prob=(0.5, 0.94),
    smooth=False,
    visuals={"ci_band": {"color": "C0"}, "observed_scatter": False, "pe_line": False},
    figure_kwargs={"figsize": (12, 7)},
)
ax = pc.viz["figure"].item().axes[0]
bands = pc.viz["ci_band"]["date"]
band_94, band_50 = bands.sel(prob=0.94).item(), bands.sel(prob=0.5).item()
band_94.set_label(r"$94\%$ HDI")
band_50.set_label(r"$50\%$ HDI")
(train_line,) = ax.plot(
    xnum_train, np.asarray(data_train[:, 0]), c="black", lw=1, label="Training Data"
)
ax.xaxis.set_major_locator(demand_loc)
ax.xaxis.set_major_formatter(demand_fmt)
ax.legend(handles=[band_94, band_50, train_line])
ax.set(title="Prior Predictive Checks", ylabel="Demand (GW)", xlabel="Time");

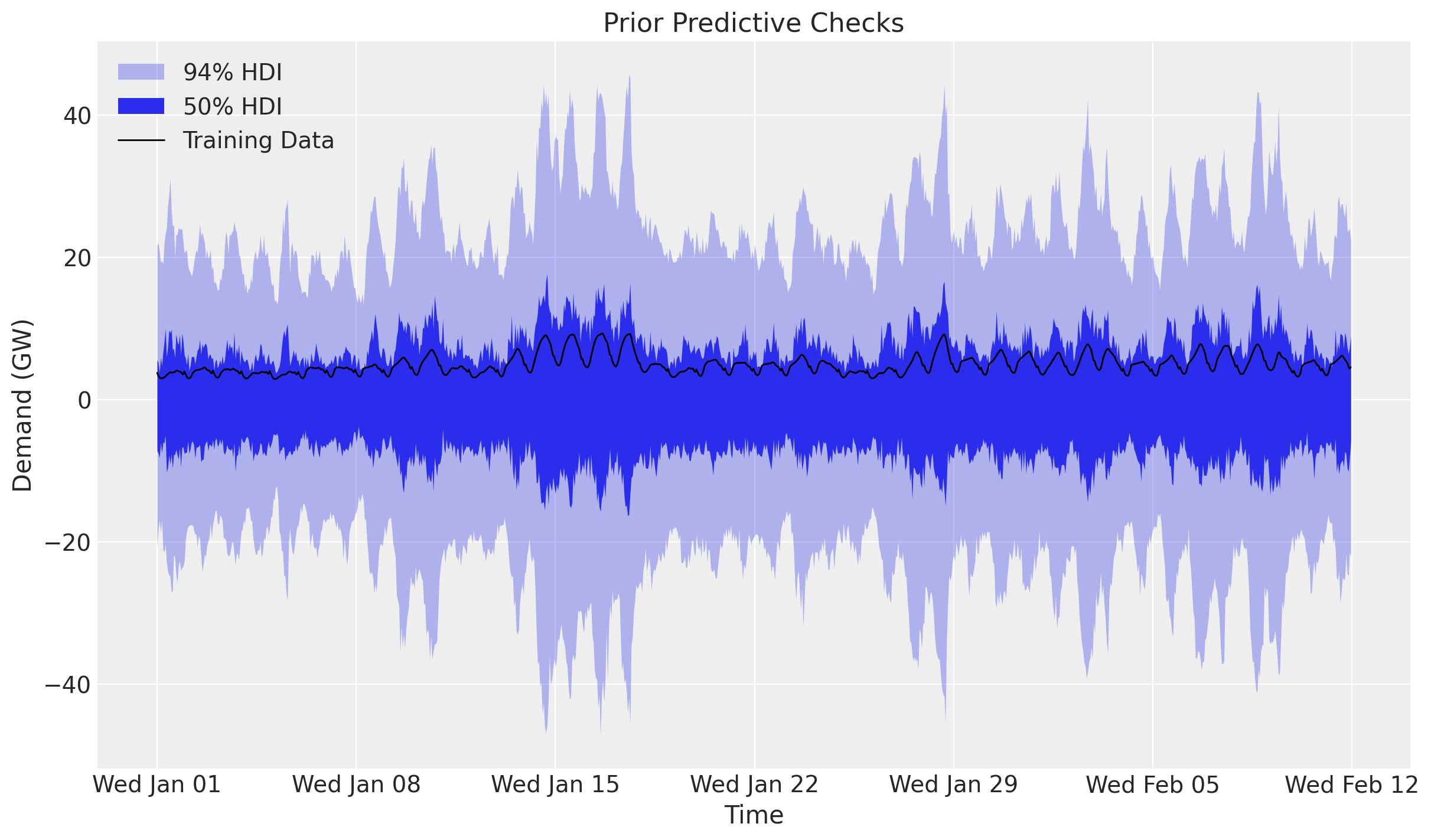

The prior predictive distribution is not too far from the training data but is not very restrictive either.

Inference with SVI

We fit the model with stochastic variational inference through the Forecaster class, which wraps the SVI fit and exposes the fitted guide, params and the ELBO losses. The posterior is multimodal: the multiplicative beta_temperature * temperature term trades off against the overall level, so a plain AutoNormal can settle on a monotonic temperature effect. We pass a custom guide initialized at a feasible point (init_to_feasible), which reliably recovers the heating-and-cooling (U-shaped) effect; Forecaster accepts any guide through its guide argument.

rng_key, rng_subkey = random.split(rng_key)
guide = AutoNormal(model, init_loc_fn=init_to_feasible)
forecaster = Forecaster(
    rng_subkey,
    model,
    data_train,
    covariates_train,
    guide=guide,
    optim=Adam(step_size=0.005),
    num_steps=50_000,
)

fig, ax = plt.subplots(figsize=(9, 6))
ax.plot(forecaster.losses)
ax.set_yscale("log")

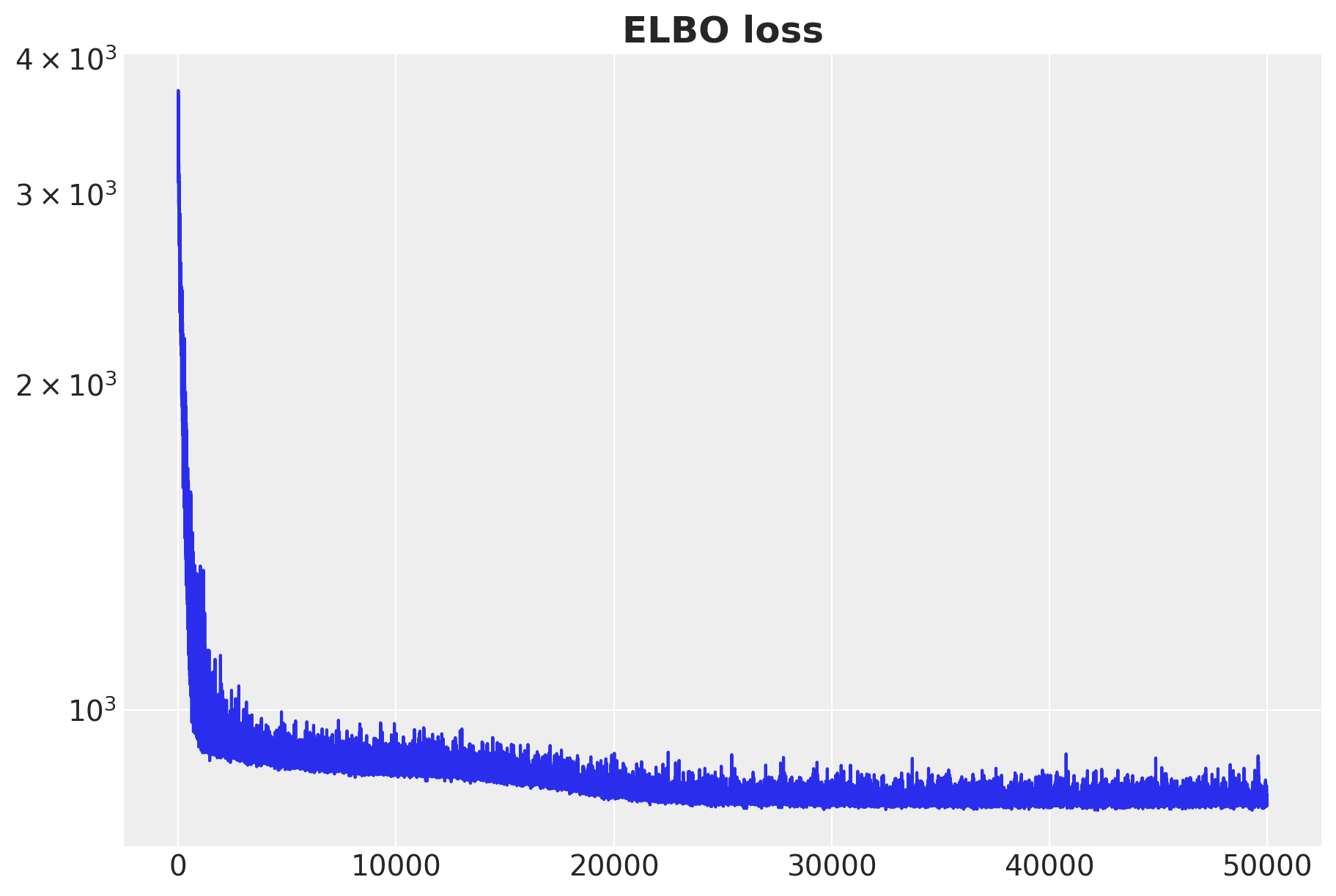

ax.set_title("ELBO loss", fontsize=18, fontweight="bold");

The ELBO loss is decreasing as expected.

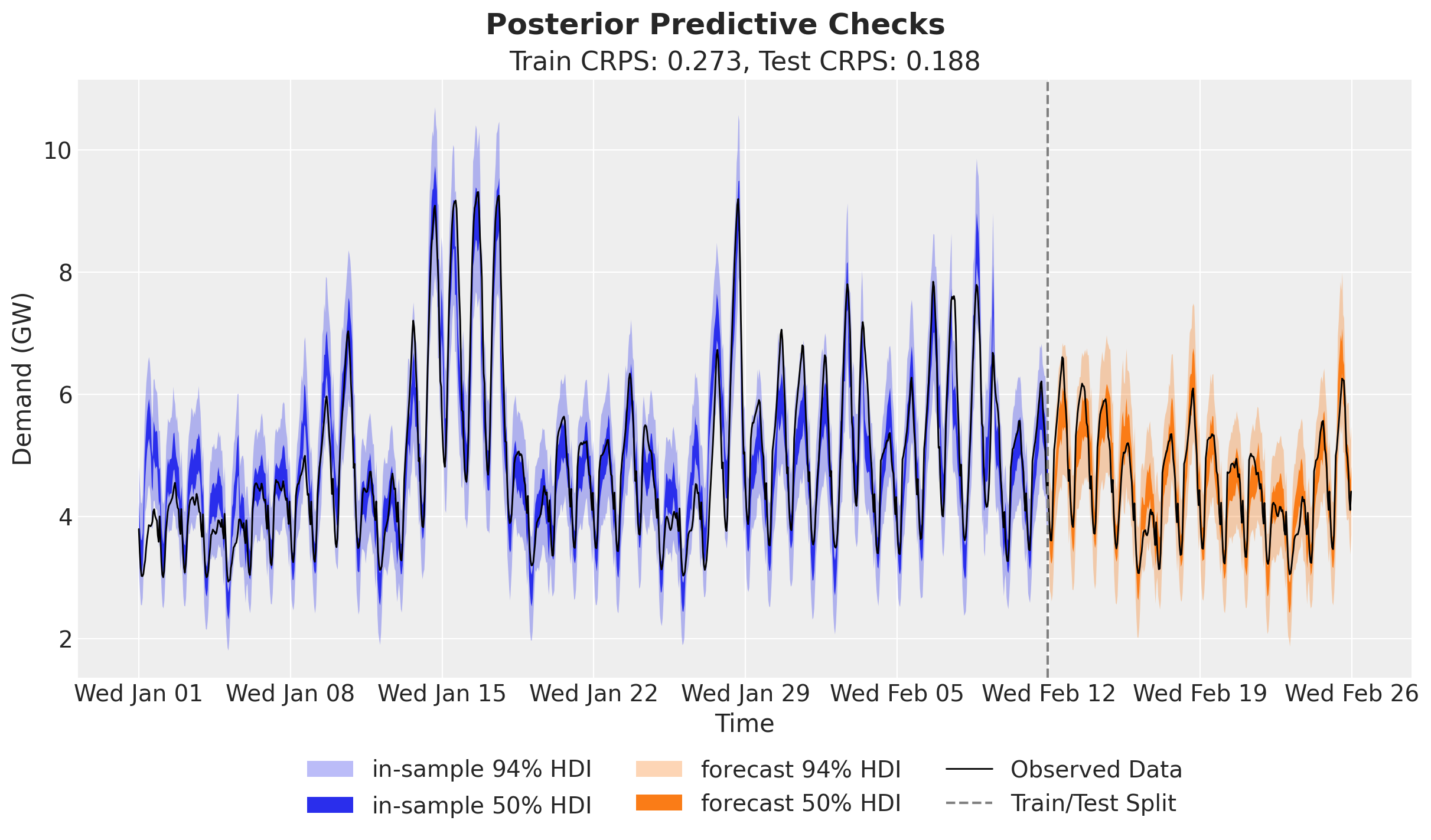

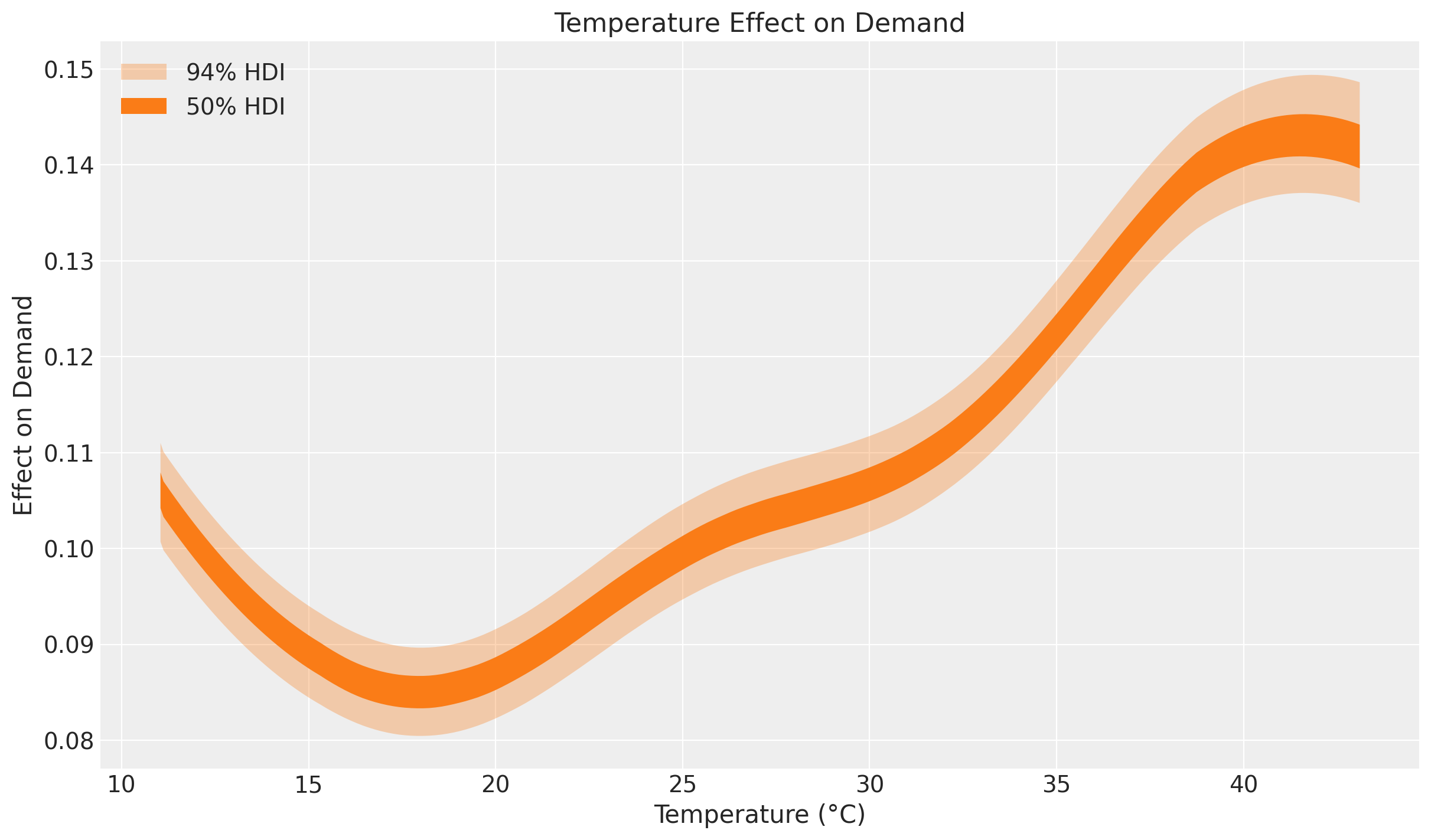

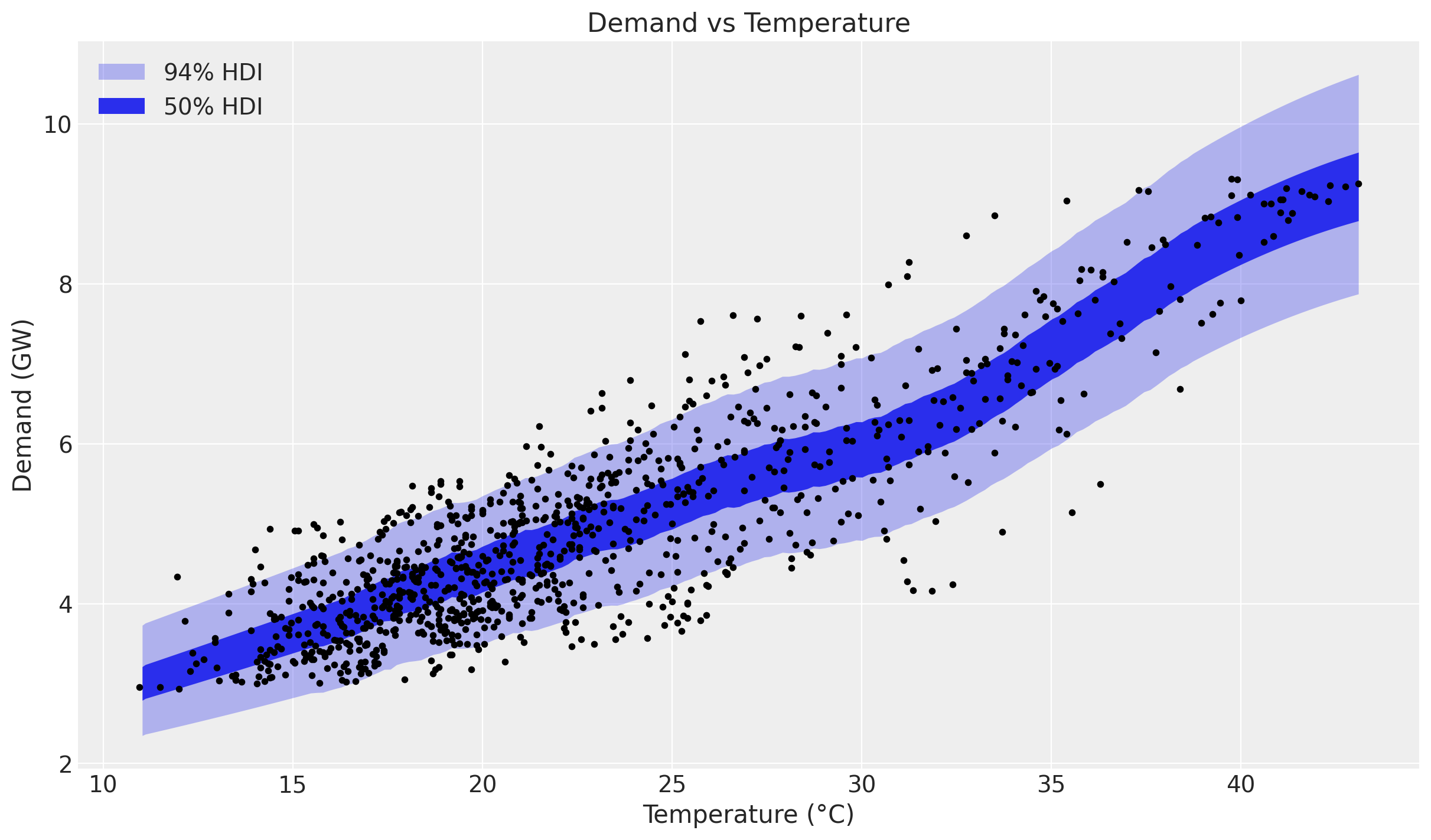

Posterior predictive checks

We now generate in-sample posterior predictive samples (drawing posterior latents from the fitted guide and pushing them through the model) and forecast the held-out two weeks by calling the forecaster with the full-horizon covariates. We keep the deterministic beta_temperature site to inspect the temperature effect later.

num_posterior_samples = 5_000

rng_key, rng_subkey = random.split(rng_key)
posterior_samples = forecaster.guide.sample_posterior(
    rng_subkey, forecaster.params, sample_shape=(num_posterior_samples,)
)

rng_key, rng_subkey = random.split(rng_key)
train_posterior = Predictive(
    model, posterior_samples=posterior_samples, return_sites=["obs", "beta_temperature"]
)(rng_subkey, covariates_train)

rng_key, rng_subkey = random.split(rng_key)
forecast = forecaster(rng_subkey, data_train, covariates, num_samples=num_posterior_samples)

Forecast evaluation

We score the train and test forecasts with evaluate_forecast, which reports several metrics at once: CRPS (the Continuous Ranked Probability Score), mean absolute error, root mean squared error, and the empirical coverage of the central 90% prediction interval.

train_metrics = evaluate_forecast(train_posterior["obs"], data_train)
test_metrics = evaluate_forecast(forecast, data_test)

metrics_table = pd.DataFrame({"train": train_metrics, "test": test_metrics})
metrics_table
train test
mae 0.374878 0.259288
rmse 0.510099 0.325937
crps 0.272944 0.187844
coverage 0.918651 0.991071

The held-out scores land in the same ballpark as the in-sample ones (here even a touch sharper), and the central 90% interval is well calibrated in-sample (coverage near 0.9) and conservative out-of-sample, so the model generalizes to the held-out two weeks rather than overfitting. We can now compare the posterior predictive distribution with the training and test data.

train_obs = train_posterior["obs"][..., 0]
forecast_obs = forecast[..., 0]

xnum_test = mdates.date2num(dates_test)

idata_train = az.from_dict(
    {
        "posterior_predictive": {"obs": np.asarray(train_obs)[None]},
        "observed_data": {"obs": np.asarray(data_train[:, 0])},
        "constant_data": {"date": xnum_train},
    },
    coords={"time": xnum_train},
    dims={"obs": ["time"], "date": ["time"]},
)
idata_test = az.from_dict(
    {
        "posterior_predictive": {"obs": np.asarray(forecast_obs)[None]},
        "observed_data": {"obs": np.asarray(data_test[:, 0])},
        "constant_data": {"date": xnum_test},
    },
    coords={"time": xnum_test},
    dims={"obs": ["time"], "date": ["time"]},
)

pc = az.plot_lm(
    idata_train,
    y="obs",
    x="date",
    ci_kind="hdi",
    ci_prob=(0.5, 0.94),
    smooth=False,
    visuals={"ci_band": {"color": "C0"}, "observed_scatter": False, "pe_line": False},
    figure_kwargs={"figsize": (12, 7)},
)
train_bands = pc.viz["ci_band"]["date"]
band_train_94 = train_bands.sel(prob=0.94).item()
band_train_50 = train_bands.sel(prob=0.5).item()
az.plot_lm(
    idata_test,
    y="obs",
    x="date",
    plot_collection=pc,
    ci_kind="hdi",
    ci_prob=(0.5, 0.94),
    smooth=False,
    visuals={"ci_band": {"color": "C1"}, "observed_scatter": False, "pe_line": False},
)
test_bands = pc.viz["ci_band"]["date"]
band_test_94 = test_bands.sel(prob=0.94).item()
band_test_50 = test_bands.sel(prob=0.5).item()
ax = pc.viz["figure"].item().axes[0]
band_train_94.set_label(r"in-sample $94\%$ HDI")
band_train_50.set_label(r"in-sample $50\%$ HDI")
band_test_94.set_label(r"forecast $94\%$ HDI")
band_test_50.set_label(r"forecast $50\%$ HDI")
obs_dates = mdates.date2num(np.concatenate([dates_train, dates_test]))
obs_values = np.concatenate([np.asarray(data_train[:, 0]), np.asarray(data_test[:, 0])])
(obs_line,) = ax.plot(obs_dates, obs_values, c="black", lw=1, label="Observed Data")
split_line = ax.axvline(x=xnum_train[-1], color="gray", linestyle="--", label="Train/Test Split")
ax.xaxis.set_major_locator(demand_loc)
ax.xaxis.set_major_formatter(demand_fmt)
ax.legend(
    handles=[band_train_94, band_train_50, band_test_94, band_test_50, obs_line, split_line],
    loc="upper center",
    bbox_to_anchor=(0.5, -0.1),
    ncol=3,
)
ax.set(
    title=f"Train CRPS: {train_metrics['crps']:.3f}, Test CRPS: {test_metrics['crps']:.3f}",
    ylabel="Demand (GW)",
    xlabel="Time",
)
fig = pc.viz["figure"].item()
fig.suptitle("Posterior Predictive Checks", fontsize=18, fontweight="bold");

The predictions look very good, and clearly better than the basic linear model used in the TensorFlow Probability tutorial (which is fine, as they focus on the core API).

Temperature effect on demand

Being happy about the forecast performance, we can dig deeper into the temperature effect. First we simply plot the predictions and the raw values against temperature, sorting by temperature so the HDI band reads cleanly.

temperature_train = np.asarray(temperature[:t_train])
order = np.argsort(temperature_train)

idata_demand = az.from_dict(
    {
        "posterior_predictive": {"obs": np.asarray(train_obs[:, order])[None]},
        "observed_data": {"obs": np.asarray(data_train[order, 0])},
        "constant_data": {"temperature": temperature_train[order]},
    },
    dims={"obs": ["obs_dim"], "temperature": ["obs_dim"]},
)
pc = az.plot_lm(
    idata_demand,
    y="obs",
    x="temperature",
    ci_kind="hdi",
    ci_prob=(0.5, 0.94),
    visuals={"ci_band": {"color": "C0"}, "observed_scatter": False, "pe_line": False},
    figure_kwargs={"figsize": (12, 7)},
)
ax = pc.viz["figure"].item().axes[0]
bands = pc.viz["ci_band"]["temperature"]
band_94, band_50 = bands.sel(prob=0.94).item(), bands.sel(prob=0.5).item()
band_94.set_label(r"$94\%$ HDI")
band_50.set_label(r"$50\%$ HDI")
ax.scatter(temperature_train, np.asarray(data_train[:, 0]), c="black", s=10)
ax.legend(handles=[band_94, band_50])
ax.set(title="Demand vs Temperature", xlabel="Temperature (°C)", ylabel="Demand (GW)");

The non-linearity is clearly visible. Next we look at the latent relationship between temperature and demand: the posterior distribution of the Gaussian Process component beta_temperature.

beta_temperature = train_posterior["beta_temperature"]

idata_beta = az.from_dict(
    {
        "posterior_predictive": {"obs": np.asarray(beta_temperature[:, order])[None]},
        "observed_data": {"obs": np.zeros_like(temperature_train[order])},
        "constant_data": {"temperature": temperature_train[order]},
    },
    dims={"obs": ["obs_dim"], "temperature": ["obs_dim"]},
)
pc = az.plot_lm(
    idata_beta,
    y="obs",
    x="temperature",
    ci_kind="hdi",
    ci_prob=(0.5, 0.94),
    visuals={"ci_band": {"color": "C1"}, "observed_scatter": False, "pe_line": False},
    figure_kwargs={"figsize": (12, 7)},
)
ax = pc.viz["figure"].item().axes[0]
bands = pc.viz["ci_band"]["temperature"]
band_94, band_50 = bands.sel(prob=0.94).item(), bands.sel(prob=0.5).item()
band_94.set_label(r"$94\%$ HDI")
band_50.set_label(r"$50\%$ HDI")
ax.legend(handles=[band_94, band_50])
ax.set(title="Temperature Effect on Demand", xlabel="Temperature (°C)", ylabel="Effect on Demand");

This effect plot coincides with the exploratory comment by Hyndman and Athanasopoulos at https://otexts.com/fpp2/scatterplots.html:

“It is clear that high demand occurs when temperatures are high due to the effect of air-conditioning. But there is also a heating effect, where demand increases for very low temperatures.”

Indeed, at the extremes of the common temperature range the temperature effect on demand increases. Heating and cooling usually happen outside the range \(15\,°C - 25\,°C\).

References

Source: Electricity demand forecasting with `numpyro_forecast`
