ARMA(1,1) Model

Simulate an ARMA(1,1) process, recover its parameters with NUTS, and evaluate the forecasts with expanding-window cross-validation.

ARMA(1,1) Model with numpyro_forecast

This notebook ports the blog post Notes on an ARMA(1,1) Model with NumPyro to the numpyro_forecast package. Autoregressive moving average (ARMA) models are the workhorse of classical time series analysis, and the (1,1) member is the smallest one that combines both mechanisms: an autoregressive term that feeds the previous observation back into the mean, and a moving average term that feeds the previous forecast error back. We simulate data from an ARMA(1,1) process, so we own the data generating process and can verify that the model recovers the true parameters, and we fit it with MCMC (the NUTS sampler) through the package’s functional fit_mcmc.

Two deliberate changes from the blog post are worth calling out:

Instead of a single train-test split, we evaluate with expanding-window time-slice cross-validation via numpyro_forecast.backtest, scoring every fold with the continuous ranked probability score (CRPS) and the empirical coverage of the central 50\% and 94\% intervals, both in-sample and out-of-sample, exactly as in the univariate forecasting example.
The forecast path is fully generative: over the horizon we sample future innovations and feed them back into the ARMA recursion, so the forecast uncertainty compounds correctly step by step. The blog post instead zeroed the future errors inside its prediction loop, which understates the multi-step uncertainty.

A practical note on the design, in the same spirit as the exponential smoothing example: the built-in time_series and predict primitives assume a deterministic mean plus independent per-step noise, which cannot express ARMA’s recursive dependence on past observations and errors. We therefore write the model body directly against the functional API’s Horizon value, registering the framework’s "obs" and "forecast" sites ourselves, while reusing everything downstream: fit_mcmc, to_datatree, and backtest. And since an ARMA model is, at heart, a regression on the lagged series itself, the observed series plays the role of the covariates: the covariates argument is the natural carrier for the history the filter needs, because it spans the full horizon and is available at prediction time. The model only ever reads the first t_obs rows, so no future information leaks into a forecast (we simply never look past the training window).

Prepare notebook

from functools import partial

import arviz as az
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import numpyro
import numpyro.distributions as dist
import pandas as pd
from jax import random
from jaxtyping import Float

from numpyro_forecast import (
    HMCForecaster,
    backtest,
    eval_coverage,
    eval_crps,
    forecasting_model,
    predictions_to_datatree,
    to_datatree,
)
from numpyro_forecast.acf import acf, pacf
from numpyro_forecast.functional import Horizon, fit_mcmc
from numpyro_forecast.typing import Array

az.style.use("arviz-darkgrid")
plt.rcParams["figure.figsize"] = [10, 6]
plt.rcParams["figure.dpi"] = 100
plt.rcParams["figure.facecolor"] = "white"

numpyro.set_host_device_count(n=4)

rng_key = random.PRNGKey(seed=42)


%load_ext autoreload
%autoreload 2
%load_ext jaxtyping
%jaxtyping.typechecker beartype.beartype
%config InlineBackend.figure_format = "retina"

Generate data

The ARMA(1,1) process is defined by the recursion

y_t = \phi \, y_{t-1} + \theta \, \varepsilon_{t-1} + \varepsilon_t, \qquad \varepsilon_t \sim \text{Normal}(0, \sigma),

where \phi is the autoregressive coefficient, \theta the moving average coefficient, and \sigma the innovation scale. We simulate T = 100 observations with \phi = 0.4, \theta = 0.7, and \sigma = 0.5 (one extra step initializes the recursion and is dropped). As in the blog post, we write the simulation twice: first as a transparent Python loop, then with jax.lax.scan, which compiles the recursion into a single efficient operation and is the idiom we also use inside the model. Compared to the blog we tighten the type hints: the key takes the package-wide Array type and the return shape is spelled out with a jaxtyping annotation.

phi_true = 0.4
theta_true = 0.7
noise_scale = 0.5
n_samples = 100 + 1  # one extra step to initialize the recursion


def generate_arma_1_1_data_for_loop(
    rng_key: Array, n_samples: int, phi: float, theta: float, noise_scale: float
) -> Float[Array, " t"]:
    """Simulate an ARMA(1,1) series with an explicit Python loop.

    Parameters
    ----------
    rng_key
        PRNG key for the innovations.
    n_samples
        Number of steps to simulate; the initial step is dropped, so the
        returned series has ``n_samples - 1`` entries.
    phi
        Autoregressive coefficient.
    theta
        Moving average coefficient.
    noise_scale
        Scale of the Gaussian innovations.

    Returns
    -------
    Float[Array, " t"]
        The simulated series of length ``n_samples - 1``.
    """
    error = noise_scale * random.normal(rng_key, (n_samples,))
    y = jnp.zeros(n_samples)
    for t in range(1, n_samples):
        y = y.at[t].set(phi * y[t - 1] + theta * error[t - 1] + error[t])
    return y[1:]


rng_key, rng_subkey = random.split(rng_key)
y_for_loop = generate_arma_1_1_data_for_loop(
    rng_subkey, n_samples, phi_true, theta_true, noise_scale
)
print(f"series shape: {y_for_loop.shape}")

series shape: (100,)

The scan version threads a carry (y_prev, error_prev) through the innovations and produces the same series. Because JAX keys are pure, reusing rng_subkey reproduces the innovations bit for bit, so we can also print their realized standard deviation: with only T = 100 draws it lands visibly below the population value \sigma = 0.5, a fact we will need when judging the parameter recovery below.

def generate_arma_1_1_data_scan(
    rng_key: Array, n_samples: int, phi: float, theta: float, noise_scale: float
) -> Float[Array, " t"]:
    """Simulate an ARMA(1,1) series with :func:`jax.lax.scan`.

    Parameters
    ----------
    rng_key
        PRNG key for the innovations.
    n_samples
        Number of steps to simulate; the initial step is dropped, so the
        returned series has ``n_samples - 1`` entries.
    phi
        Autoregressive coefficient.
    theta
        Moving average coefficient.
    noise_scale
        Scale of the Gaussian innovations.

    Returns
    -------
    Float[Array, " t"]
        The simulated series of length ``n_samples - 1``.
    """
    error = noise_scale * random.normal(rng_key, (n_samples,))

    def arma_step(carry, noise):
        y_prev, error_prev = carry
        y_t = phi * y_prev + theta * error_prev + noise
        return (y_t, noise), y_t

    _, y = jax.lax.scan(arma_step, (jnp.zeros(()), error[0]), error[1:])
    return y


y = generate_arma_1_1_data_scan(rng_subkey, n_samples, phi_true, theta_true, noise_scale)
print(f"for-loop and scan agree: {jnp.allclose(y_for_loop, y, atol=1e-6)}")

eps_realized = noise_scale * random.normal(rng_subkey, (n_samples,))
print(f"realized innovation sd: {eps_realized.std():.2f} (population value: {noise_scale})")

for-loop and scan agree: True
realized innovation sd: 0.43 (population value: 0.5)

Throughout the package, time lives at axis -2 and the observation dimension at axis -1, so the single series has shape (100, 1). Following the design note above, the same array also serves as the covariates.

data = y[:, None]
covariates = data  # the lagged series is the "covariate" of an ARMA model
duration = data.shape[-2]
time = np.arange(duration)
print(f"data shape: {data.shape}")

fig, ax = plt.subplots()
ax.plot(time, y, color="black", lw=1)

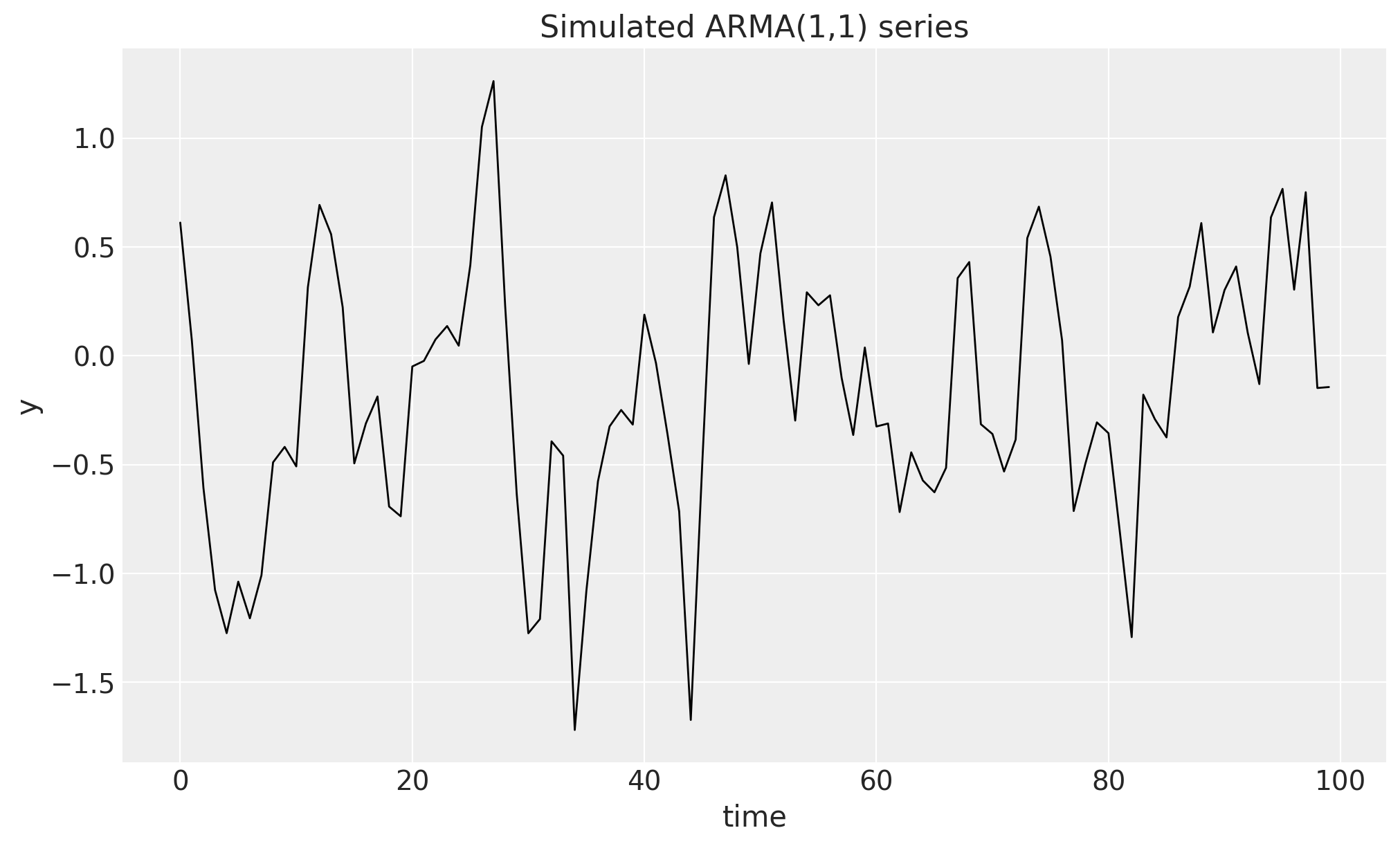

ax.set(title="Simulated ARMA(1,1) series", xlabel="time", ylabel="y");

data shape: (100, 1)

ACF and PACF

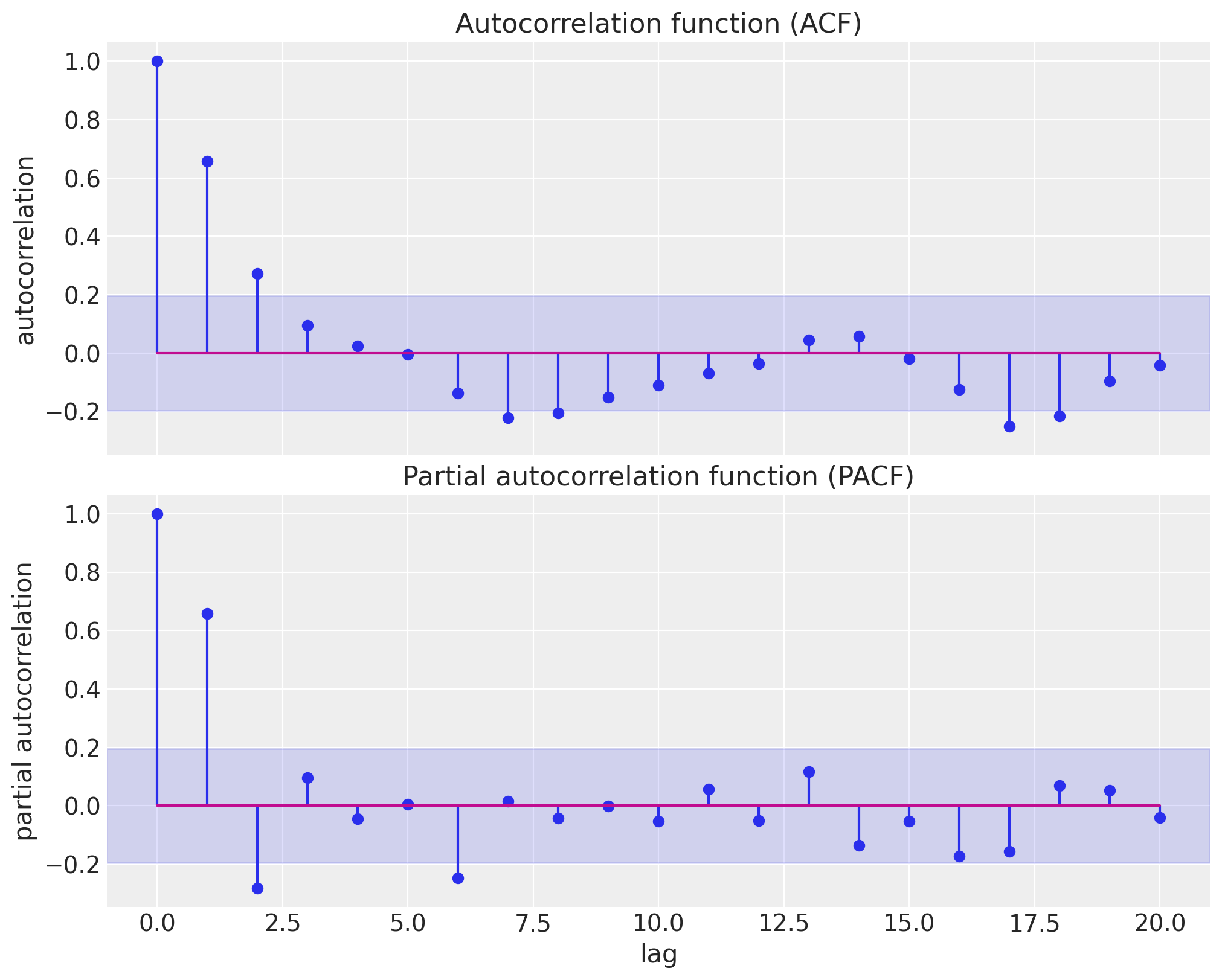

Before modeling, we look at the empirical autocorrelation function (ACF) and partial autocorrelation function (PACF), the classical tools for identifying ARMA orders. The blog post used the statsmodels plotting helpers; here we use the package’s own acf and pacf functions from numpyro_forecast.acf. Both are jitted, compute the ACF for all lags at once via the FFT, derive the PACF through the Durbin-Levinson recursion, and broadcast over leading batch axes, so the same call works on a panel of series (with time on the last axis).

max_lag = 20
lags = np.arange(max_lag + 1)
significance_bound = 1.96 / np.sqrt(duration)

fig, (ax_acf, ax_pacf) = plt.subplots(
    nrows=2, ncols=1, figsize=(10, 8), sharex=True, sharey=True, layout="constrained"
)
ax_acf.stem(lags, np.asarray(acf(y, max_lag)))
ax_acf.axhspan(-significance_bound, significance_bound, color="C0", alpha=0.15)
ax_acf.set(title="Autocorrelation function (ACF)", ylabel="autocorrelation")
ax_pacf.stem(lags, np.asarray(pacf(y, max_lag)))
ax_pacf.axhspan(-significance_bound, significance_bound, color="C0", alpha=0.15)
ax_pacf.set(
    title="Partial autocorrelation function (PACF)",
    xlabel="lag",
    ylabel="partial autocorrelation",
);

The shaded band is the approximate 95\% significance region \pm 1.96 / \sqrt{T} for white noise. The ACF starts high and decays geometrically over the first few lags, while the PACF is large and positive at lag 1 and then flips to a significant negative value at lag 2 before dying out: a sign-alternating decay rather than a clean cutoff. Neither function cuts sharply, which is the classical signature of a mixed ARMA process: a pure AR(p) model would cut the PACF after lag p, and a pure MA(q) model would cut the ACF after lag q.

Model specification

The generative model adds a global mean \mu to the recursion and uses the same priors as the blog post:

y_t = \mu + \phi \, y_{t-1} + \theta \, \varepsilon_{t-1} + \varepsilon_t, \qquad \varepsilon_t \sim \text{Normal}(0, \sigma),

\begin{align*} \mu & \sim \text{Normal}(0, 1), \\ \phi & \sim \text{Uniform}(-1, 1), \\ \theta & \sim \text{Uniform}(-1, 1), \\ \sigma & \sim \text{HalfNormal}(1). \end{align*}

The key insight (from the blog post, and the same one behind the innovations state space form of exponential smoothing) is that in sample the errors are deterministic given the parameters and the observed data: running the recursion forward, the one-step-ahead prediction at time t is \hat{y}_t = \mu + \phi \, y_{t-1} + \theta \, \varepsilon_{t-1} and the error is simply \varepsilon_t = y_t - \hat{y}_t, initialized with y_{-1} = \mu and \varepsilon_{-1} = 0. The whole in-sample likelihood is then a single Gaussian observation site: conditioning y_t \sim \text{Normal}(\hat{y}_t, \sigma) is exactly the blog post’s “condition on the errors” trick, \varepsilon_t \sim \text{Normal}(0, \sigma), since the two differ only by a location shift.

The model body follows the package’s two-scan pattern:

In sample. A deterministic jax.lax.scan filters the observed series into one-step-ahead means \hat{y}_t (exposed as the deterministic site "mu_t"), and the "obs" site conditions the data on them.
Out of sample. When h.future > 0 we draw the horizon innovations from the prior at a separate "eps_future" site, then roll the recursion forward feeding the sampled observation and innovation back into the carry, and expose the trajectory as the deterministic "forecast" site the forecaster reads. Because "eps_future" does not exist while training, Predictive draws it from the prior at forecast time, so the forecast uncertainty compounds over the horizon exactly as the generative process says it should.

Neither scan body contains a sample site, so plain jax.lax.scan is all we need.

def arma_1_1(h: Horizon, covariates: Array) -> None:
    """ARMA(1,1) model with a deterministic in-sample error-feedback filter.

    Parameters
    ----------
    h
        The train/forecast horizon for the current model call.
    covariates
        The observed series itself, with time at axis ``-2``; only the first
        ``h.t_obs`` rows are read.
    """
    y = covariates[..., : h.t_obs, 0]  # observed history only; never reads beyond t_obs

    mu = numpyro.sample("mu", dist.Normal(loc=0, scale=1))
    phi = numpyro.sample("phi", dist.Uniform(low=-1, high=1))
    theta = numpyro.sample("theta", dist.Uniform(low=-1, high=1))
    sigma = numpyro.sample("sigma", dist.HalfNormal(scale=1))

    def transition_fn(carry, y_t):
        y_prev, error_prev = carry
        pred = mu + phi * y_prev + theta * error_prev
        return (y_t, y_t - pred), pred

    init_carry = (mu, jnp.zeros(()))  # y_{-1} = mu and eps_{-1} = 0 seed the recursion
    (_, error_last), preds = jax.lax.scan(transition_fn, init_carry, y)

    numpyro.deterministic("mu_t", preds[:, None])
    numpyro.sample("obs", dist.Normal(loc=preds[:, None], scale=sigma), obs=h.data)

    if h.future > 0:
        eps_future = numpyro.sample(
            "eps_future", dist.Normal(loc=0, scale=sigma).expand([h.future]).to_event(1)
        )

        def forecast_fn(carry, eps):
            y_prev, error_prev = carry
            pred = mu + phi * y_prev + theta * error_prev
            y_next = pred + eps  # the sampled innovation is fed back into the carry
            return (y_next, eps), y_next

        _, y_future = jax.lax.scan(forecast_fn, (y[-1], error_last), eps_future)
        numpyro.deterministic("forecast", y_future[:, None])


model = forecasting_model(arma_1_1)

Inference with NUTS

We fit the model on the full series (no train-test split; the held-out evaluation comes from the cross-validation below) with the No-U-Turn Sampler through the functional fit_mcmc, running 4 chains of 1{,}000 warmup and 1{,}000 sampling steps each. The posterior is tiny: because the in-sample errors are deterministic, the only latent parameters are \mu, \phi, \theta, and \sigma.

We then export the whole fit into an ArviZ-schema xarray.DataTree with to_datatree: a single call restores the (chain, draw) structure of the posterior draws, samples the in-sample one-step-ahead posterior predictive, and stores the observed data and covariates alongside, so everything downstream (diagnostics, trace plots, the in-sample fit) reads from one object. Since covariates has the same duration as data, there is no forecast horizon and hence no forecast groups here; the out-of-sample story comes from the cross-validation below.

rng_key, rng_subkey = random.split(rng_key)
fit = fit_mcmc(
    rng_subkey,
    model,
    data,
    covariates,
    num_warmup=1_000,
    num_samples=1_000,
    num_chains=4,
)

rng_key, rng_subkey = random.split(rng_key)
tree = to_datatree(
    rng_subkey,
    fit,
    model,
    data,
    covariates,
    posterior_dims={"mu_t": ["time", "obs_dim"]},
)
tree

Diagnostics and parameter recovery

The tree’s posterior group carries the draws with their (chain, draw) structure (deterministic sites such as "mu_t" ride along; we summarize just the four parameters), so az.summary gives us the whole convergence and recovery picture in one call: posterior means and standard deviations, the 94\% HDIs, bulk and tail effective sample sizes, \hat{R}, and the Monte Carlo standard errors. Since we simulated the data ourselves, we prepend the true parameter values as the first column.

scalar_vars = ["mu", "phi", "theta", "sigma"]
true_values = {"mu": 0.0, "phi": phi_true, "theta": theta_true, "sigma": noise_scale}

recovery = az.summary(tree, var_names=scalar_vars, ci_kind="hdi", ci_prob=0.94)
recovery.insert(0, "true_value", pd.Series(true_values))
recovery

	true_value	mean	sd	hdi94_lb	hdi94_ub	ess_bulk	ess_tail	r_hat	mcse_mean	mcse_sd
mu	0.0	-0.081	0.07	-0.22	0.046	2796	2133	1.00	0.0013	0.00095
phi	0.4	0.369	0.144	0.083	0.62	2016	2108	1.00	0.0033	0.0023
theta	0.7	0.532	0.15	0.25	0.8	1994	1819	1.00	0.0033	0.0021
sigma	0.5	0.436	0.0314	0.38	0.5	3077	2811	1.00	0.00057	0.00041

The sampler recovers the parameters well: every true value lies within about two posterior standard deviations of its posterior mean, the \hat{R} values are essentially 1, and the effective sample sizes are healthy. The point estimates for \theta and \sigma come in somewhat low, and this is a feature of the particular realization rather than of the model: the innovations drawn for this seed happen to have a sample standard deviation of 0.43 (against the population value 0.5; we printed the realized value right after generating the data), and the posterior mean of \sigma matches that realized scale almost exactly. The moving average coefficient is in turn the hardest parameter to pin down with T = 100 observations, because \phi and \theta can partially substitute for each other in an ARMA likelihood (a well-known feature), so its posterior is wide. The trace plots make the recovery visual: the dashed black lines mark the true values, and the chains mix well around them.

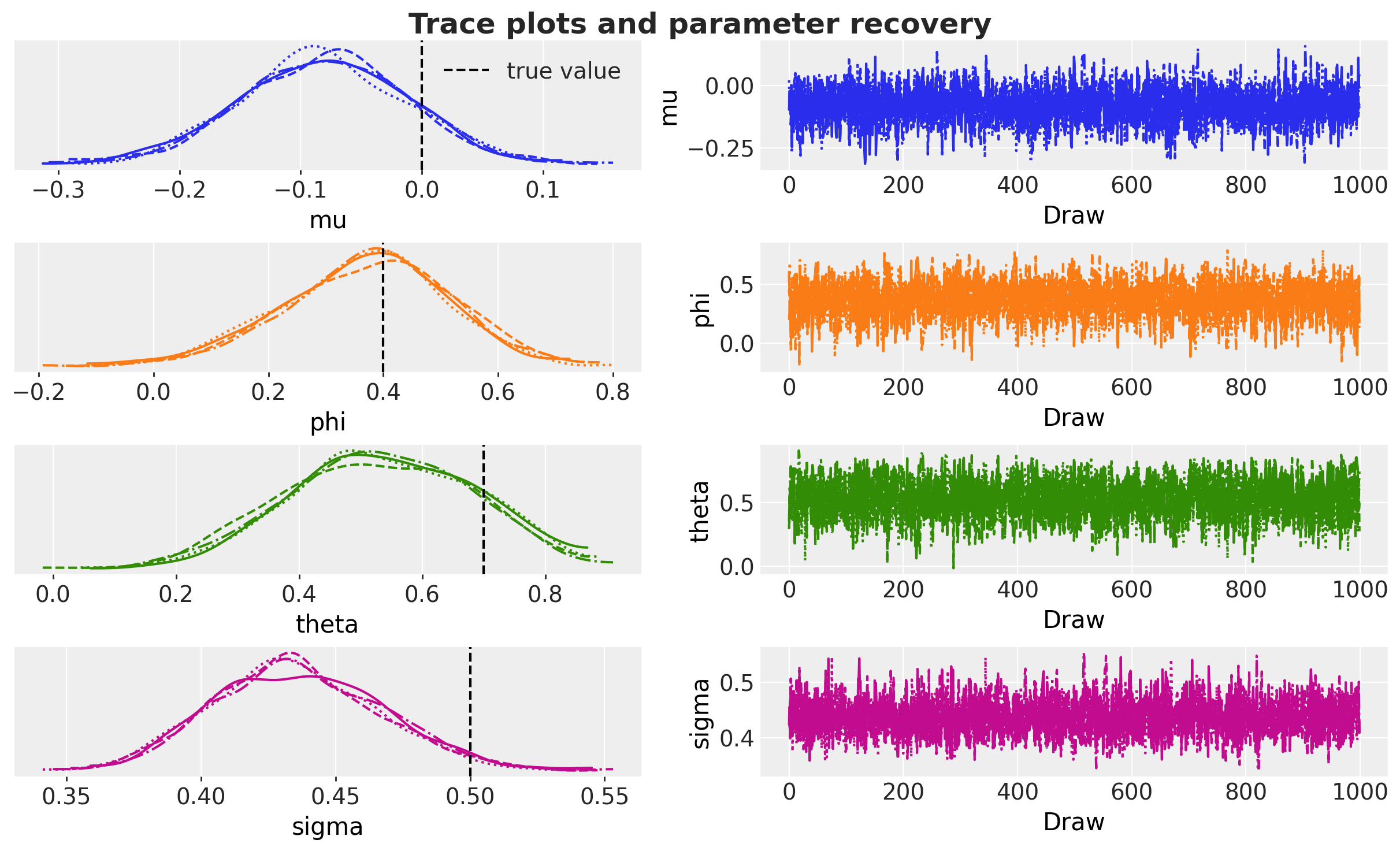

pc_trace = az.plot_trace_dist(
    tree,
    var_names=scalar_vars,
    compact=True,
    figure_kwargs={"figsize": (12, 7)},
)
for var_name in scalar_vars:
    ax_dist = pc_trace.viz["plot"][var_name].sel(column="dist").item()
    ax_dist.axvline(true_values[var_name], color="black", ls="--", lw=1.5, label="true value")
pc_trace.viz["plot"]["mu"].sel(column="dist").item().legend(loc="upper right")
pc_trace.viz["figure"].item().suptitle(
    "Trace plots and parameter recovery",
    fontsize=18,
    fontweight="bold",
    y=1.03,
);

In-sample fit

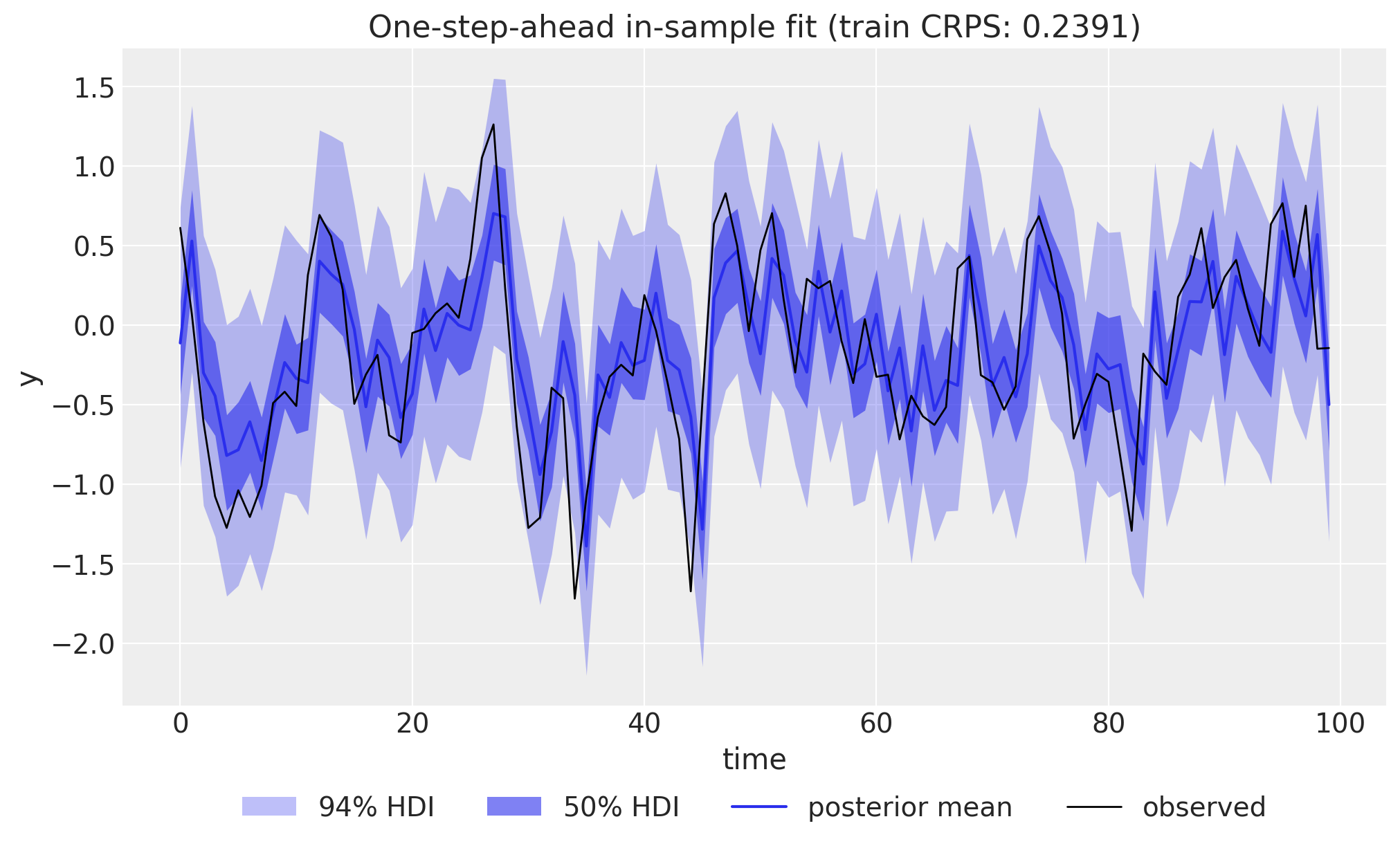

Next we look at the one-step-ahead posterior predictive over the training window, which to_datatree already sampled into the tree’s posterior_predictive group: at each time step the predicted mean uses the observed history up to the previous step, and the "obs" site adds the observation noise. We only need to stack the chains back into a single sample dimension to get the draws-first layout the plotting and scoring helpers expect. We plot the posterior mean prediction together with the 50\% and 94\% HDI bands (inner band darker, outer band lighter) against the observed series with ArviZ plot_lm, packing the draws with the package’s predictions_to_datatree, and score the fit with the CRPS, a proper scoring rule that compares each observation to the whole predictive distribution (lower is better).

def hdi_label(prob: float, prefix: str = "") -> str:
    r"""Legend label for an HDI band, e.g. ``$94\%$ HDI``."""
    percent = f"{prob:.0%}".replace("%", r"\%")
    return f"{prefix}${percent}$ HDI"


hdi_probs = (0.5, 0.94)
hdi_alphas = [0.6, 0.3]  # 50% band darker, 94% band lighter

train_pp = (
    tree["posterior_predictive"]
    .dataset["obs"]
    .stack(sample=("chain", "draw"))
    .transpose("sample", "time", "obs_dim")
    .to_numpy()
)
crps_train = eval_crps(train_pp, data)

idata_in_sample = predictions_to_datatree(train_pp, time.astype(float), ["y"], observed=data)
pc = az.plot_lm(
    idata_in_sample,
    y="obs",
    x="t",
    plot_dim="time",
    ci_kind="hdi",
    ci_prob=hdi_probs,
    smooth=False,
    point_estimate="mean",
    visuals={
        "ci_band": {"color": "C0"},
        "observed_scatter": False,
        "pe_line": {"color": "C0", "alpha": 1.0, "width": 1.5},
    },
    aes={"alpha": ["prob"]},
    alpha=hdi_alphas,
    figure_kwargs={"figsize": (10, 6)},
)
bands = pc.viz["ci_band"]["t"]
band_94, band_50 = bands.sel(prob=0.94).item(), bands.sel(prob=0.5).item()
band_94.set_label(hdi_label(0.94))
band_50.set_label(hdi_label(0.5))
pe_line = pc.viz["pe_line"]["t"].item()
pe_line.set_label("posterior mean")
ax = pc.viz["figure"].item().axes[0]
(obs_line,) = ax.plot(time, np.asarray(y), color="black", lw=1, label="observed")
ax.legend(
    handles=[band_94, band_50, pe_line, obs_line],
    loc="upper center",
    bbox_to_anchor=(0.5, -0.1),
    ncol=4,
)
ax.set(
    title=f"One-step-ahead in-sample fit (train CRPS: {crps_train:.4f})",
    xlabel="time",
    ylabel="y",
);

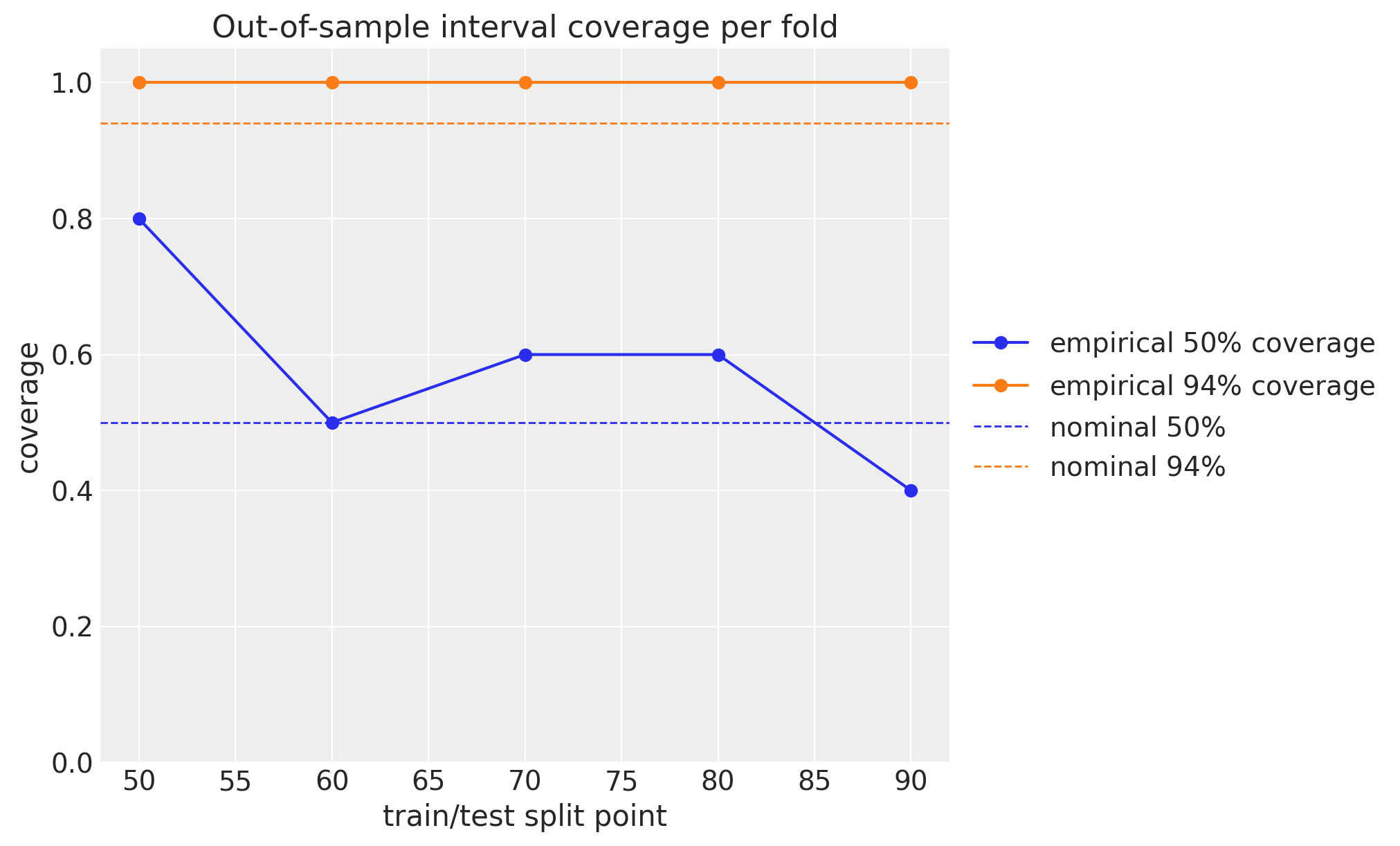

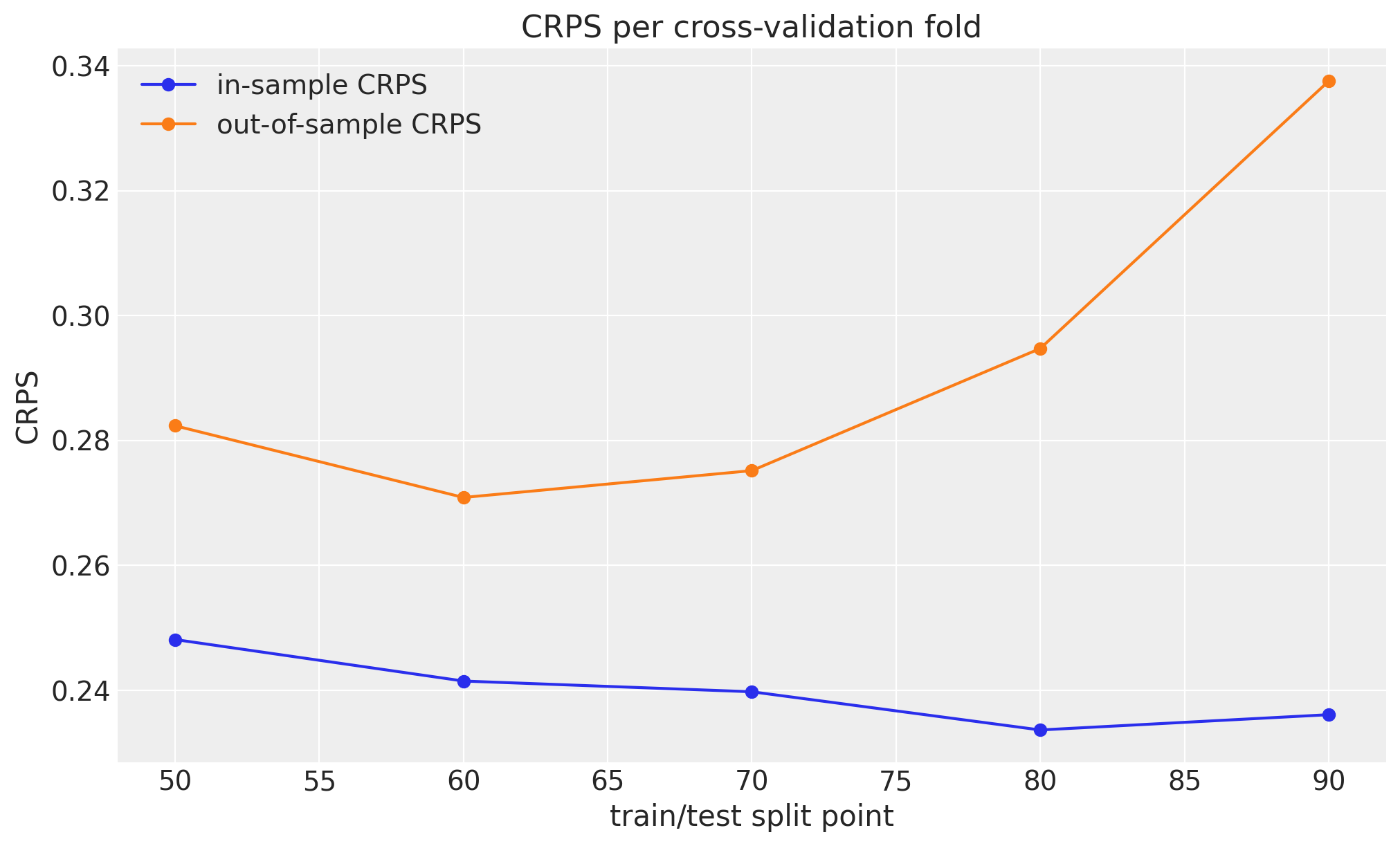

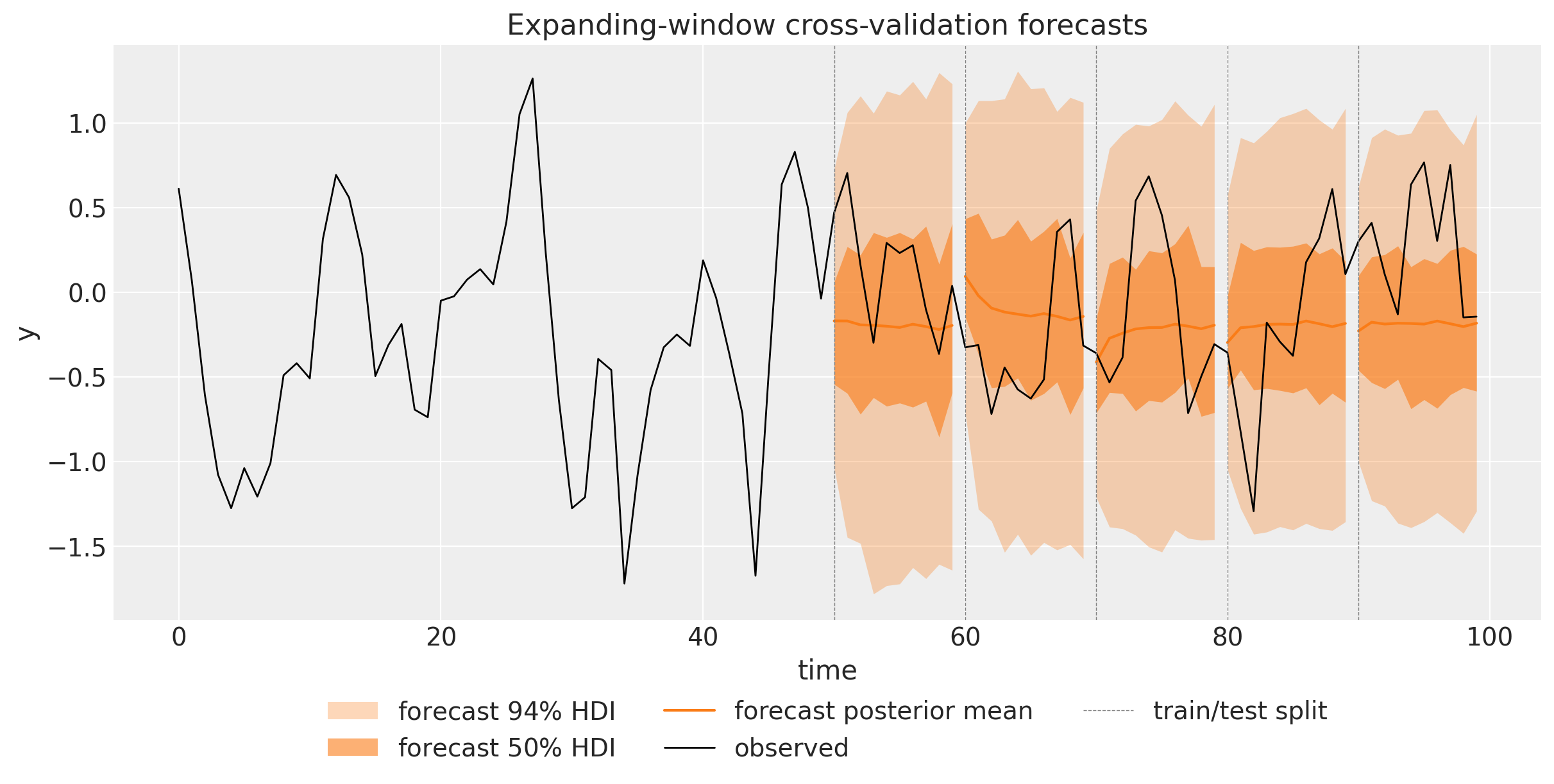

Expanding-window cross-validation

A single split tells us how the model does on one held-out window. A more honest picture comes from expanding-window time-slice cross-validation: we repeatedly move the train/test boundary forward, refit from scratch, and forecast the next window, so every later part of the series is scored out-of-sample exactly once. numpyro_forecast.backtest runs this loop for us, refitting the NUTS sampler on each fold through HMCForecaster, the OOP counterpart of fit_mcmc that backtest constructs per fold.

We size the folds at roughly 10\% of the series: each fold forecasts the next 10 steps (test_window=10), stepping forward 10 steps at a time (stride=10) so the folds do not overlap, and the first 50 observations (half the series) seed the initial training window (min_train_window=50). That yields five folds with split points at t = 50, 60, 70, 80, 90. With eval_train=True each fold also scores its in-sample one-step-ahead posterior predictive with the same metrics (this is what the series-as-covariates design buys us), and keep_predictions=True retains the out-of-sample forecast samples so we can plot them. Alongside the CRPS we track the empirical coverage of the central 50\% and 94\% intervals: a well-calibrated forecast covers close to its nominal level.

metrics = {
    "crps": eval_crps,
    "coverage_50": partial(eval_coverage, alpha=0.5),
    "coverage_94": partial(eval_coverage, alpha=0.94),
}

rng_key, rng_subkey = random.split(rng_key)
results = backtest(
    rng_subkey,
    data,  # full dataset, no train/test split
    covariates,  # the series itself, sliced per fold by backtest
    lambda: model,
    forecaster_fn=HMCForecaster,
    metrics=metrics,
    test_window=10,  # ~10% of the series per fold
    stride=10,  # non-overlapping folds
    min_train_window=50,  # half the series seeds the first fold
    num_samples=2_000,
    eval_train=True,
    keep_predictions=True,
    forecaster_options={"num_warmup": 1_000, "num_samples": 1_000, "num_chains": 4},
)

split_points = [r.t1 for r in results]
train_crps = [r.train_metrics["crps"] for r in results]
test_crps = [r.metrics["crps"] for r in results]
test_cov_50 = [r.metrics["coverage_50"] for r in results]
test_cov_94 = [r.metrics["coverage_94"] for r in results]

print(f"folds: {len(results)} (split points: {split_points})")
print(f"mean in-sample CRPS:     {np.mean(train_crps):.4f}")
print(f"mean out-of-sample CRPS: {np.mean(test_crps):.4f}")
print(f"mean out-of-sample 50% coverage: {np.mean(test_cov_50):.2f}  (nominal 0.50)")
print(f"mean out-of-sample 94% coverage: {np.mean(test_cov_94):.2f}  (nominal 0.94)")

folds: 5 (split points: [50, 60, 70, 80, 90])
mean in-sample CRPS:     0.2398
mean out-of-sample CRPS: 0.2921
mean out-of-sample 50% coverage: 0.58  (nominal 0.50)
mean out-of-sample 94% coverage: 1.00  (nominal 0.94)

Forecasts per fold

Overlaying every fold’s out-of-sample forecast (orange posterior mean line plus 50\% and 94\% HDI bands, again inner darker and outer lighter) on the observed series gives the rolling-origin view: each band picks up where the previous fold’s training window ended, and the dashed lines mark the successive train/test splits.

pc = None
for r in results:
    prediction = r.prediction
    if prediction is None:  # keep_predictions=True guarantees this never triggers
        continue
    fold_time = time[r.t1 : r.t2].astype(float)
    idata_fold = predictions_to_datatree(prediction, fold_time, ["y"], observed=data[r.t1 : r.t2])
    if pc is None:
        pc = az.plot_lm(
            idata_fold,
            y="obs",
            x="t",
            plot_dim="time",
            ci_kind="hdi",
            ci_prob=hdi_probs,
            smooth=False,
            point_estimate="mean",
            visuals={
                "ci_band": {"color": "C1"},
                "observed_scatter": False,
                "pe_line": {"color": "C1", "alpha": 1.0, "width": 1.5},
            },
            aes={"alpha": ["prob"]},
            alpha=hdi_alphas,
            figure_kwargs={"figsize": (12, 6)},
        )
        bands = pc.viz["ci_band"]["t"]
        band_94, band_50 = bands.sel(prob=0.94).item(), bands.sel(prob=0.5).item()
        pe_line = pc.viz["pe_line"]["t"].item()
    else:
        az.plot_lm(
            idata_fold,
            y="obs",
            x="t",
            plot_dim="time",
            plot_collection=pc,
            ci_kind="hdi",
            ci_prob=hdi_probs,
            smooth=False,
            point_estimate="mean",
            visuals={
                "ci_band": {"color": "C1"},
                "observed_scatter": False,
                "pe_line": {"color": "C1", "alpha": 1.0, "width": 1.5},
            },
        )

if pc is None:
    msg = "no folds were plotted"
    raise ValueError(msg)
ax = pc.viz["figure"].item().axes[0]
band_94.set_label(hdi_label(0.94, prefix="forecast "))
band_50.set_label(hdi_label(0.5, prefix="forecast "))
pe_line.set_label("forecast posterior mean")
(obs_line,) = ax.plot(time, np.asarray(y), color="black", lw=1, label="observed")
split_lines = [
    ax.axvline(r.t1, color="gray", ls="--", lw=0.5, label="train/test split") for r in results
]
ax.legend(
    handles=[band_94, band_50, pe_line, obs_line, split_lines[0]],
    loc="upper center",
    bbox_to_anchor=(0.5, -0.1),
    ncol=3,
)
ax.set(title="Expanding-window cross-validation forecasts", xlabel="time", ylabel="y");

The bands show textbook ARMA behavior. Within each fold the forecast mean decays toward the unconditional level at the geometric rate \phi^h, so with \phi = 0.4 the memory of the last observation is essentially gone after two or three steps and the band settles at the marginal width of the process. This is not a defect: for a short-memory process, reverting quickly to the stationary distribution is exactly the right forecast, and what cross-validation checks here is that the bands are the right width, in other words that the forecast is calibrated.

CRPS per fold

The per-fold CRPS quantifies the picture. The in-sample and out-of-sample scores stay close across folds, and neither trends upward as the training window grows, so the model is neither over- nor under-fitting: with only four parameters and a correctly specified model class, even the first fold’s 50 observations pin the predictive distribution down well. The out-of-sample score is a bit noisier, as it is computed from just 10 observations per fold.

fig, ax = plt.subplots()
ax.plot(split_points, train_crps, "o-", color="C0", label="in-sample CRPS")
ax.plot(split_points, test_crps, "o-", color="C1", label="out-of-sample CRPS")
ax.legend()
ax.set(xlabel="train/test split point", ylabel="CRPS", title="CRPS per cross-validation fold");

Forecast calibration

Finally we check the coverage: the fraction of held-out observations that fall inside the central 50\% and 94\% prediction intervals of their fold’s forecast. Well-calibrated forecasts should track the dashed nominal levels; points above mean the bands are too wide (under-confident), points below that they are too narrow (over-confident). With only 10 observations per fold the empirical coverage is grainy (each observation moves it by 0.1), so some wobble around the nominal levels is expected.

A small caveat: eval_coverage measures coverage of the central quantile interval, while the plotted bands are ArviZ HDIs. For the near-symmetric Gaussian predictive here the two nearly coincide, so this is a faithful check of the bands shown above.

fig, ax = plt.subplots()
ax.plot(split_points, test_cov_50, "o-", color="C0", label=r"empirical $50\%$ coverage")
ax.plot(split_points, test_cov_94, "o-", color="C1", label=r"empirical $94\%$ coverage")
ax.axhline(0.5, color="C0", ls="--", lw=1, label=r"nominal $50\%$")
ax.axhline(0.94, color="C1", ls="--", lw=1, label=r"nominal $94\%$")
ax.legend(loc="center left", bbox_to_anchor=(1, 0.5))
ax.set(
    xlabel="train/test split point",
    ylabel="coverage",
    title="Out-of-sample interval coverage per fold",
    ylim=(0, 1.05),
);

References

Orduz, J. Notes on an ARMA(1,1) Model with NumPyro. The blog post this notebook ports.
Hyndman, R. J., & Athanasopoulos, G. (2021). Forecasting: Principles and Practice, 3rd edition. Chapter 9: ARIMA models.
NumPyro documentation: Example: AR(2) process.
Pyro forum: Lax.scan to implement ARMA(1,1).
The exponential smoothing example in this documentation, which uses the same functional-model-body pattern for an error-feedback model.
The univariate forecasting example in this documentation, which introduces backtest and the per-fold evaluation workflow.

Source: ARMA(1,1) Model with `numpyro_forecast`

Notebooks
