# PyData Berlin 2019: Gaussian Processes for Time Series Forecasting (scikit-learn)

In this notebook we run some experiments to demonstrate how we can use Gaussian Processes in the context of time series forecasting with scikit-learn. This material is part of a talk on Gaussian Process for Time Series Analysis presented at the PyCon DE & PyData 2019 Conference in Berlin.

Update: Additional material and plots were included for the Second Symposium on Machine Learning and Dynamical Systems at The Fields Institute (virtual event).

Videos

• PyData Berlin 2019
• Second Symposium on Machine Learning and Dynamical Systems 2020

Slides

Here you can find the slides of the talk.

Suggestions and comments are always welcome!

References:

## Prepare Notebook

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib.ticker import FormatStrFormatter
import seaborn as sns
sns.set_style(
style='darkgrid',
rc={'axes.facecolor': '.9', 'grid.color': '.8'}
)
sns.set_palette(palette='deep')
sns_c = sns.color_palette(palette='deep')
%matplotlib inline
plt.rcParams['figure.figsize'] = [12, 6]
plt.rcParams['figure.dpi'] = 100

## Example 1

In this first example we consider a seasonal stationary time series.

### Generate Data

• Time Variable

Let us define a “time” variable $$t\in \mathbb{N}$$.

# Number of samples.
n = 1000
# Generate "time" variable.
t = np.arange(n)

data_df = pd.DataFrame({'t' : t})
• Seasonal Component

Let us define a function to generate seasonal components (Fourier modes).

# Generate seasonal variables.
def seasonal(t, amplitude, period):
"""Generate a sinusoidal curve."""
y1 = amplitude * np.sin((2*np.pi)*t/period)
return y1

data_df['s1'] = data_df['t'].apply(lambda t : seasonal(t, amplitude=2, period=40))

# Define target variable.
data_df['y1'] = data_df['s1']

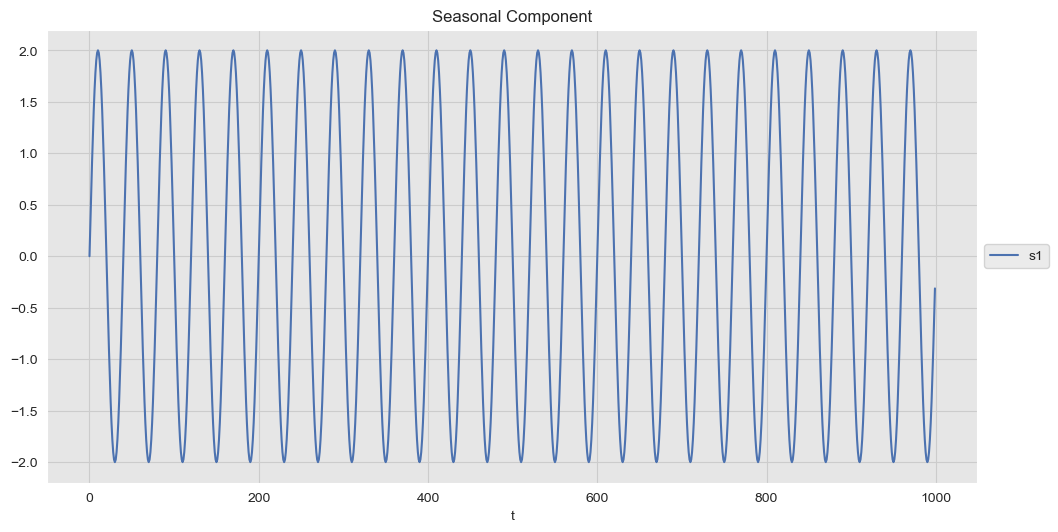

Let us plot this seasonal variable:

fig, ax = plt.subplots()
sns.lineplot(x='t', y='s1', data=data_df, color=sns_c[0], label='s1', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Seasonal Component', xlabel='t', ylabel='');
• Gaussian Noise

# Set noise standard deviation.
sigma_n = 0.3

data_df['epsilon'] = np.random.normal(loc=0, scale=sigma_n, size=n)
# Add noise to target variable.
data_df ['y1'] = data_df ['y1'] + data_df ['epsilon']

Let us plot the resulting data:

fig, ax = plt.subplots()
sns.lineplot(x='t', y='y1', data=data_df, color=sns_c[0], label='y1', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Sample Data 1', xlabel='t', ylabel='');

### Define Model

Let us now define the kernel of the gaussian process model. We include the following kernel components (recall that the sum of kernels is again a kernel):

We add bounds to the kernel hyper-parameters which are optimized by maximizing the log-marginal-likelihood (see documentation).

from sklearn.gaussian_process.kernels import WhiteKernel, ExpSineSquared, ConstantKernel

k0 = WhiteKernel(noise_level=0.3**2, noise_level_bounds=(0.1**2, 0.5**2))

k1 = ConstantKernel(constant_value=2) * \
ExpSineSquared(length_scale=1.0, periodicity=40, periodicity_bounds=(35, 45))

kernel_1  = k0 + k1

Next we initialize the GaussianProcessRegressor object.

from sklearn.gaussian_process import GaussianProcessRegressor

gp1 = GaussianProcessRegressor(
kernel=kernel_1,
n_restarts_optimizer=10,
normalize_y=True,
alpha=0.0
)

### Split Data

We now prepare and split the data for the model.

X = data_df['t'].values.reshape(n, 1)
y = data_df['y1'].values.reshape(n, 1)

prop_train = 0.7
n_train = round(prop_train * n)

X_train = X[:n_train]
y_train = y[:n_train]

X_test = X[n_train:]
y_test = y[n_train:]

### Prior Sampling

Let us sample from the prior distribution and compare it with our given data.

gp1_prior_samples = gp1.sample_y(X=X_train, n_samples=100)

fig, ax = plt.subplots()
for i in range(100):
sns.lineplot(x=X_train[...,0], y = gp1_prior_samples[:, i], color=sns_c[1], alpha=0.2, ax=ax)
sns.lineplot(x=X_train[...,0], y=y_train[..., 0], color=sns_c[0], label='y1', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='GP1 Prior Samples', xlabel='t');

We indeed see the prior specification seems plausible for this model.

### Model Fit + Predictions

Let us fit the model and generate predictions.

gp1.fit(X_train, y_train)
GaussianProcessRegressor(alpha=0.0,
kernel=WhiteKernel(noise_level=0.09) + 1.41**2 * ExpSineSquared(length_scale=1, periodicity=40),
n_restarts_optimizer=10, normalize_y=True)
# Generate predictions.
y_pred, y_std = gp1.predict(X, return_std=True)

data_df['y_pred'] = y_pred
data_df['y_std'] = y_std
data_df['y_pred_lwr'] = data_df['y_pred'] - 2*data_df['y_std']
data_df['y_pred_upr'] = data_df['y_pred'] + 2*data_df['y_std']

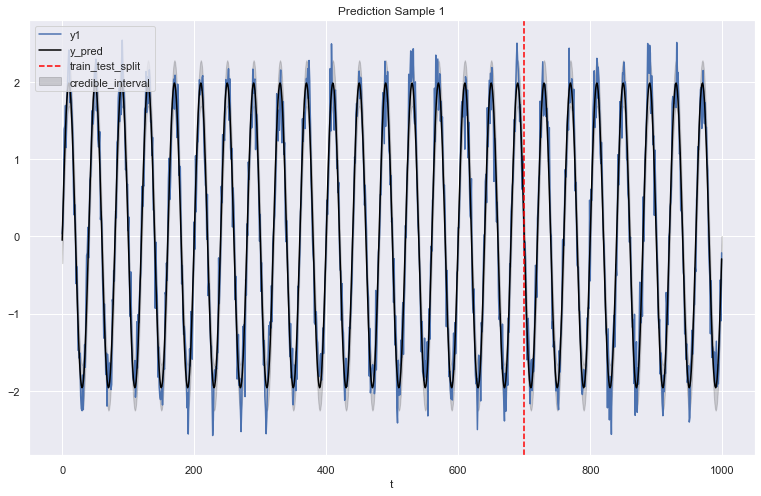

We plot the predictions.

fig, ax = plt.subplots()

ax.fill_between(
x=data_df['t'],
y1=data_df['y_pred_lwr'],
y2=data_df['y_pred_upr'],
color=sns_c[2],
alpha=0.15,
label='credible_interval'
)

sns.lineplot(x='t', y='y1', data=data_df, color=sns_c[0], label = 'y1', ax=ax)
sns.lineplot(x='t', y='y_pred', data=data_df, color=sns_c[2], label='y_pred', ax=ax)

ax.axvline(n_train, color=sns_c[3], linestyle='--', label='train-test split')
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Prediction Sample 1', xlabel='t', ylabel='');

Let us compute the $$R^2$$ (coefficient of determination, which can be negative) and the Mean Absolute Error of the prediction on the train and test set.

from sklearn.metrics import mean_absolute_error
print(f'R2 Score Train = {gp1.score(X=X_train, y=y_train): 0.3f}')
print(f'R2 Score Test = {gp1.score(X=X_test, y=y_test): 0.3f}')
print(f'MAE Train = {mean_absolute_error(y_true=y_train, y_pred=gp1.predict(X_train)): 0.3f}')
print(f'MAE Test = {mean_absolute_error(y_true=y_test, y_pred=gp1.predict(X_test)): 0.3f}')
R2 Score Train =  0.961
R2 Score Test =  0.960
MAE Train =  0.228
MAE Test =  0.236

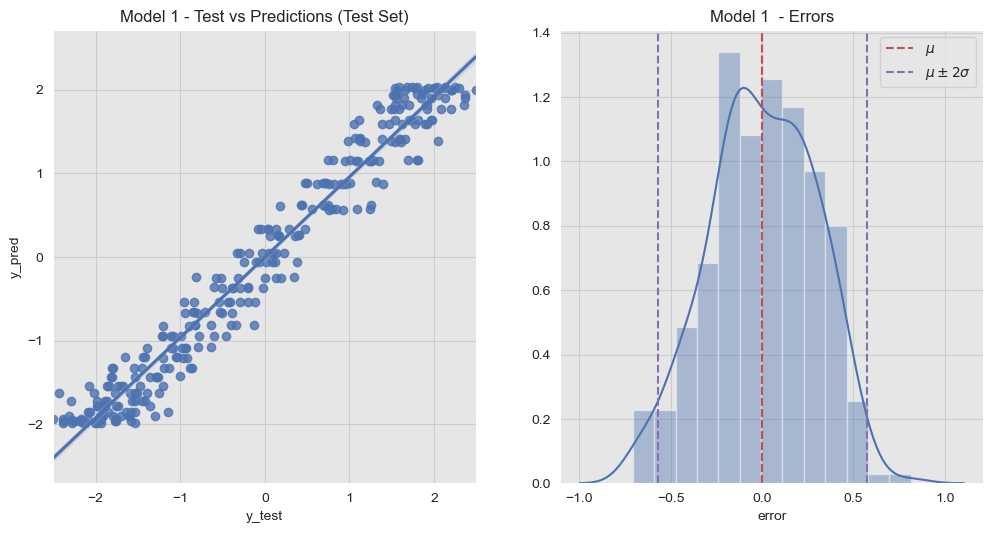

### Errors

errors = gp1.predict(X_test) - y_test
errors = errors.flatten()
errors_mean = errors.mean()
errors_std = errors.std()

fig, ax = plt.subplots(1, 2, figsize=(12, 6))
sns.regplot(x=y_test.flatten(), y=gp1.predict(X_test).flatten(), ax=ax[0])
sns.distplot(a=errors, ax=ax[1])
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--', label=f'$\mu$')
ax[1].axvline(x=errors_mean + 2*errors_std, color=sns_c[4], linestyle='--', label=f'$\mu \pm 2\sigma$')
ax[1].axvline(x=errors_mean - 2*errors_std, color=sns_c[4], linestyle='--')
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--')
ax[1].legend()
ax[0].set(title='Model 1 - Test vs Predictions (Test Set)', xlabel='y_test', ylabel='y_pred');
ax[1].set(title='Model 1  - Errors', xlabel='error', ylabel=None);

## Example 2

In this example we add a linear trend component.

• Linear Trend Component
# Generate trend component.
def linear_trend(beta, x):
"""Scale vector by a scalar."""
trend_comp = beta * x
return trend_comp

data_df['tr1'] = data_df['t'].apply(lambda x : linear_trend(0.01, x))

# Add trend to target variable y_1.
data_df['y2'] = data_df['y1'] + data_df['tr1']

Let us see the trend plot:

fig, ax = plt.subplots()
sns.lineplot(x='t', y='y2', data=data_df, color=sns_c[0], label='y2', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Sample Data 2', xlabel='t', ylabel='');

### Define Model

For this second example we add a RBF kernel to model the trend component.

from sklearn.gaussian_process.kernels import RBF

k0 = WhiteKernel(noise_level=0.3**2, noise_level_bounds=(0.1**2, 0.5**2))

k1 = ConstantKernel(constant_value=12) * \
ExpSineSquared(length_scale=1.0, periodicity=40, periodicity_bounds=(35, 45))

k2 = ConstantKernel(constant_value=10, constant_value_bounds=(1e-2, 1e3)) * \
RBF(length_scale=1e2, length_scale_bounds=(1, 1e3))

kernel_2  = k0 + k1 + k2
# Define GaussianProcessRegressor object.
gp2 = GaussianProcessRegressor(
kernel=kernel_2,
n_restarts_optimizer=10,
normalize_y=True,
alpha=0.0
)

### Split Data

We split the data as above.

y = data_df['y2'].values.reshape(n, 1)
y_train = y[:n_train]
y_test = y[n_train:]

### Prior Sampling

gp2_prior_samples = gp2.sample_y(X=X_train, n_samples=100)

fig, ax = plt.subplots()
for i in range(100):
sns.lineplot(x=X_train[...,0], y = gp2_prior_samples[:, i], color=sns_c[1], alpha=0.2, ax=ax)
sns.lineplot(x=X_train[...,0], y=y_train[..., 0], color=sns_c[0], label='y2', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='GP2 Prior Samples', xlabel='t');

### Model Fit + Predictions

gp2.fit(X_train, y_train)
GaussianProcessRegressor(alpha=0.0,
kernel=WhiteKernel(noise_level=0.09) + 3.46**2 * ExpSineSquared(length_scale=1, periodicity=40) + 3.16**2 * RBF(length_scale=100),
n_restarts_optimizer=10, normalize_y=True)
# Generate predictions.
y_pred, y_std = gp2.predict(X, return_std=True)

data_df['y_pred'] = y_pred
data_df['y_std'] = y_std
data_df['y_pred_lwr'] = data_df['y_pred'] - 2*data_df['y_std']
data_df['y_pred_upr'] = data_df['y_pred'] + 2*data_df['y_std']

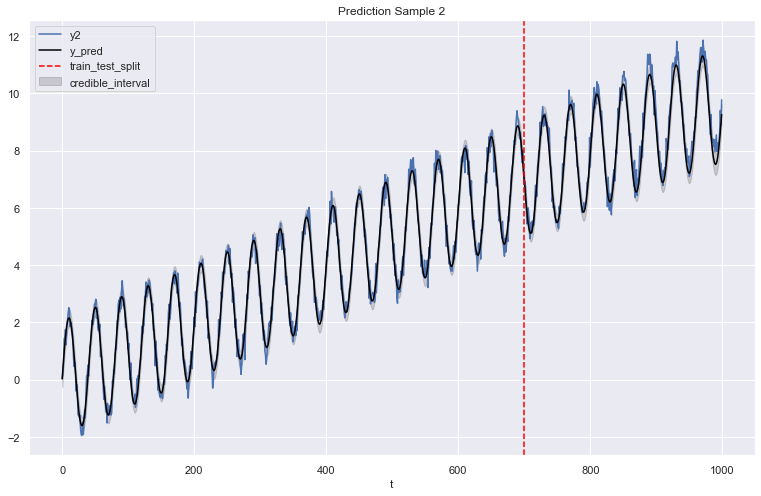

We plot the predictions.

fig, ax = plt.subplots()

ax.fill_between(
x=data_df['t'],
y1=data_df['y_pred_lwr'],
y2=data_df['y_pred_upr'],
color=sns_c[2],
alpha=0.15,
label='credible_interval'
)

sns.lineplot(x='t', y='y2', data=data_df, color=sns_c[0], label = 'y2', ax=ax)
sns.lineplot(x='t', y='y_pred', data=data_df, color=sns_c[2], label='y_pred', ax=ax)

ax.axvline(n_train, color=sns_c[3], linestyle='--', label='train-test split')
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Prediction Sample 2', xlabel='t', ylabel='');

Let us compute the metrics:

print(f'R2 Score Train = {gp2.score(X=X_train, y=y_train): 0.3f}')
print(f'R2 Score Test = {gp2.score(X=X_test, y=y_test): 0.3f}')
print(f'MAE Train = {mean_absolute_error(y_true=y_train, y_pred=gp2.predict(X_train)): 0.3f}')
print(f'MAE Test = {mean_absolute_error(y_true=y_test, y_pred=gp2.predict(X_test)): 0.3f}')
R2 Score Train =  0.987
R2 Score Test =  0.958
MAE Train =  0.229
MAE Test =  0.274
errors = gp2.predict(X_test) - y_test
errors = errors.flatten()
errors_mean = errors.mean()
errors_std = errors.std()

fig, ax = plt.subplots(1, 2, figsize=(12, 6))
sns.regplot(x=y_test.flatten(), y=gp2.predict(X_test).flatten(), ax=ax[0])
sns.distplot(a=errors, ax=ax[1])
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--', label=f'$\mu$')
ax[1].axvline(x=errors_mean + 2*errors_std, color=sns_c[4], linestyle='--', label=f'$\mu \pm 2\sigma$')
ax[1].axvline(x=errors_mean - 2*errors_std, color=sns_c[4], linestyle='--')
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--')
ax[1].legend()
ax[0].set(title='Model 2 - Test vs Predictions (Test Set)', xlabel='y_test', ylabel='y_pred');
ax[1].set(title='Model 2  - Errors', xlabel='error', ylabel=None);

## Example 3

In this third example we add a second seasonal component.

# Create other seasonal component.
data_df['s2'] = data_df['t'].apply(lambda t : seasonal(t, amplitude=1, period=13.3))
data_df['y3'] = data_df['y2'] + data_df['s2']
fig, ax = plt.subplots()
sns.lineplot(x='t', y='y3', data=data_df, color=sns_c[0], label='y3', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Sample Data 3', xlabel='t', ylabel='');

### Define Model

We add another ExpSineSquared kernel to the one of Example 2.

k0 = WhiteKernel(noise_level=0.3**2, noise_level_bounds=(0.1**2, 0.5**2))

k1 = ConstantKernel(constant_value=2) * \
ExpSineSquared(length_scale=1.0, periodicity=40, periodicity_bounds=(35, 45))

k2 = ConstantKernel(constant_value=25, constant_value_bounds=(1e-2, 1e3)) * \
RBF(length_scale=100.0, length_scale_bounds=(1, 1e4))

k3 = ConstantKernel(constant_value=1) * \
ExpSineSquared(length_scale=1.0, periodicity=12, periodicity_bounds=(10, 15))

kernel_3  = k0 + k1 + k2 + k3
# Define GaussianProcessRegressor object.
gp3 = GaussianProcessRegressor(
kernel=kernel_3,
n_restarts_optimizer=10,
normalize_y=True,
alpha=0.0
)

### Split Data

y = data_df['y3'].values.reshape(n, 1)
y_train = y[:n_train]
y_test = y[n_train:]

### Prior Sampling

gp3_prior_samples = gp3.sample_y(X=X_train, n_samples=100)

fig, ax = plt.subplots()
for i in range(100):
sns.lineplot(x=X_train[...,0], y = gp3_prior_samples[:, i], color=sns_c[1], alpha=0.2, ax=ax)
sns.lineplot(x=X_train[...,0], y=y_train[..., 0], color=sns_c[0], label='y3', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='GP3 Prior Samples', xlabel='t');

### Model Fit + Predictions

gp3.fit(X_train, y_train)
GaussianProcessRegressor(alpha=0.0,
kernel=WhiteKernel(noise_level=0.09) + 1.41**2 * ExpSineSquared(length_scale=1, periodicity=40) + 5**2 * RBF(length_scale=100) + 1**2 * ExpSineSquared(length_scale=1, periodicity=12),
n_restarts_optimizer=10, normalize_y=True)
y_pred, y_std = gp3.predict(X, return_std=True)

data_df['y_pred'] = y_pred
data_df['y_std'] = y_std
data_df['y_pred_lwr'] = data_df['y_pred'] - 2*data_df['y_std']
data_df['y_pred_upr'] = data_df['y_pred'] + 2*data_df['y_std']

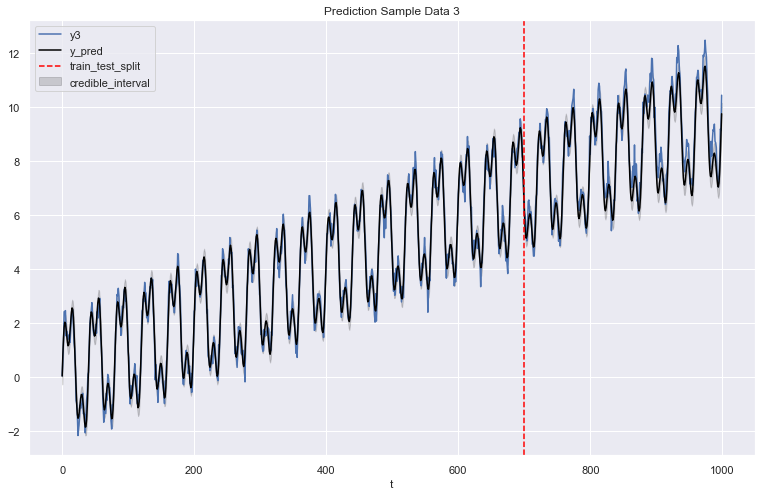

We plot the predictions:

fig, ax = plt.subplots()

ax.fill_between(
x=data_df['t'],
y1=data_df['y_pred_lwr'],
y2=data_df['y_pred_upr'],
color=sns_c[2],
alpha=0.15,
label='credible_interval'
)

sns.lineplot(x='t', y='y3', data=data_df, color=sns_c[0], label = 'y3', ax=ax)
sns.lineplot(x='t', y='y_pred', data=data_df, color=sns_c[2], label='y_pred', ax=ax)

ax.axvline(n_train, color=sns_c[3], linestyle='--', label='train-test split')
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Prediction Sample Data 3', xlabel='t', ylabel='');
print(f'R2 Score Train = {gp3.score(X=X_train, y=y_train): 0.3f}')
print(f'R2 Score Test = {gp3.score(X=X_test, y=y_test): 0.3f}')
print(f'MAE Train = {mean_absolute_error(y_true=y_train, y_pred=gp3.predict(X_train)): 0.3f}')
print(f'MAE Test = {mean_absolute_error(y_true=y_test, y_pred=gp3.predict(X_test)): 0.3f}')
R2 Score Train =  0.989
R2 Score Test =  0.960
MAE Train =  0.211
MAE Test =  0.293

### Errors

errors = gp3.predict(X_test) - y_test
errors = errors.flatten()
errors_mean = errors.mean()
errors_std = errors.std()

fig, ax = plt.subplots(1, 2, figsize=(12, 6))
sns.regplot(x=y_test.flatten(), y=gp3.predict(X_test).flatten(), ax=ax[0])
sns.distplot(a=errors, ax=ax[1])
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--', label=f'$\mu$')
ax[1].axvline(x=errors_mean + 2*errors_std, color=sns_c[4], linestyle='--', label=f'$\mu \pm 2\sigma$')
ax[1].axvline(x=errors_mean - 2*errors_std, color=sns_c[4], linestyle='--')
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--')
ax[1].legend()
ax[0].set(title='Model 3 - Test vs Predictions (Test Set)', xlabel='y_test', ylabel='y_pred');
ax[1].set(title='Model 3  - Errors', xlabel='error', ylabel=None);

### Example 4

In this last example we consider a non-linear trend component.

• Non-Linear Trend Component
# Generate trend component.
def non_linear_trend(x):
"""Scale and take square root."""
trend_comp = 0.2 * np.power(x, 1/2)
return trend_comp

# Compute non-linear trend.
data_df ['tr2'] = data_df['t'].apply(non_linear_trend)

# Add trend to target variable.
data_df ['y4'] = data_df ['y3'] + data_df ['tr2']

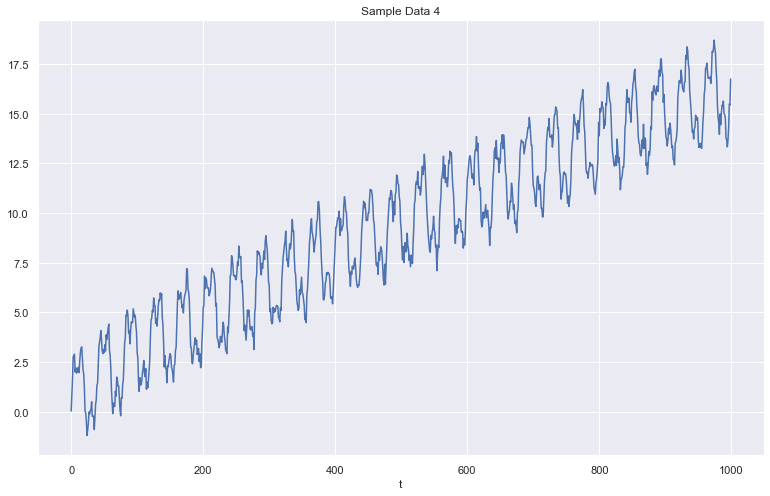

Let us see the trend plot:

fig, ax = plt.subplots()
sns.lineplot(x='t', y='y4', data=data_df, color=sns_c[0], label='y4', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Sample Data 4', xlabel='t', ylabel='');

### Define Model

Instead of an RBF kernel to model the trendd, we use a RationalQuadratic which can seen as a scale mixture (an infinite sum) of RBF kernels with different characteristic length-scales.

from sklearn.gaussian_process.kernels import RationalQuadratic

k0 = WhiteKernel(noise_level=0.3**2, noise_level_bounds=(0.1**2, 0.5**2))

k1 = ConstantKernel(constant_value=2) * \
ExpSineSquared(length_scale=1.0, periodicity=40, periodicity_bounds=(35, 45))

k2 = ConstantKernel(constant_value=100, constant_value_bounds=(1, 500)) * \
RationalQuadratic(length_scale=500, length_scale_bounds=(1, 1e4), alpha= 50.0, alpha_bounds=(1, 1e3))

k3 = ConstantKernel(constant_value=1) * \
ExpSineSquared(length_scale=1.0, periodicity=12, periodicity_bounds=(10, 15))

kernel_4  = k0 + k1 + k2 + k3
# Define GaussianProcessRegressor object.
gp4 = GaussianProcessRegressor(
kernel=kernel_4,
n_restarts_optimizer=10,
normalize_y=True,
alpha=0.0
)

### Split Data

y = data_df['y4'].values.reshape(n ,1)
y_train = y[:n_train]
y_test = y[n_train:]

### Prior Sampling

gp4_prior_samples = gp4.sample_y(X=X_train, n_samples=100)

fig, ax = plt.subplots()
for i in range(100):
sns.lineplot(x=X_train[...,0], y = gp4_prior_samples[:, i], color=sns_c[1], alpha=0.2, ax=ax)
sns.lineplot(x=X_train[...,0], y=y_train[..., 0], color=sns_c[0], label='y3', ax=ax)
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='GP4 Prior Samples', xlabel='t');

### Model Fit + Predictions

gp4.fit(X_train, y_train)
GaussianProcessRegressor(alpha=0.0,
kernel=WhiteKernel(noise_level=0.09) + 1.41**2 * ExpSineSquared(length_scale=1, periodicity=40) + 10**2 * RationalQuadratic(alpha=50, length_scale=500) + 1**2 * ExpSineSquared(length_scale=1, periodicity=12),
n_restarts_optimizer=10, normalize_y=True)
y_pred, y_std = gp4.predict(X, return_std=True)

data_df['y_pred'] = y_pred
data_df['y_std'] = y_std
data_df['y_pred_lwr'] = data_df['y_pred'] - 2*data_df['y_std']
data_df['y_pred_upr'] = data_df['y_pred'] + 2*data_df['y_std']

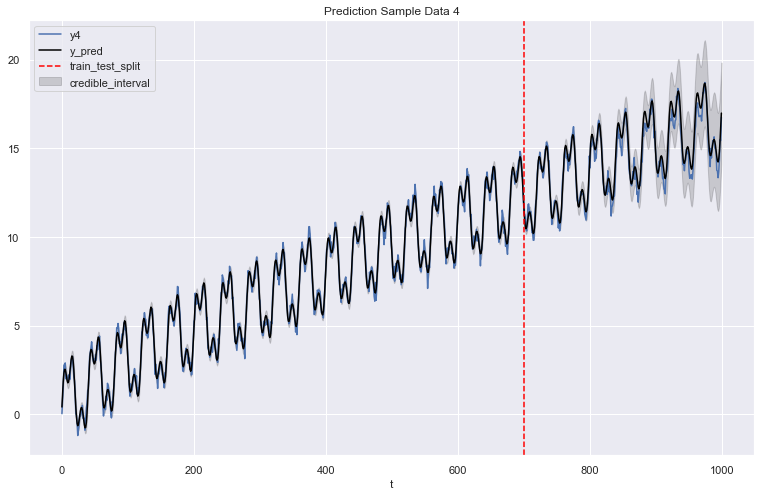

Finally, let us plot the prediction:

fig, ax = plt.subplots()

ax.fill_between(
x=data_df['t'],
y1=data_df['y_pred_lwr'],
y2=data_df['y_pred_upr'],
color=sns_c[2],
alpha=0.15,
label='credible_interval'
)

sns.lineplot(x='t', y='y4', data=data_df, color=sns_c[0], label = 'y4', ax=ax)
sns.lineplot(x='t', y='y_pred', data=data_df, color=sns_c[2], label='y_pred', ax=ax)

ax.axvline(n_train, color=sns_c[3], linestyle='--', label='train-test split')
ax.legend(loc='center left', bbox_to_anchor=(1, 0.5))
ax.set(title='Prediction Sample Data 4', xlabel='t', ylabel='');
print(f'R2 Score Train = {gp4.score(X=X_train, y=y_train): 0.3f}')
print(f'R2 Score Test = {gp4.score(X=X_test, y=y_test): 0.3f}')
print(f'MAE Train = {mean_absolute_error(y_true=y_train, y_pred=gp4.predict(X_train)): 0.3f}')
print(f'MAE Test = {mean_absolute_error(y_true=y_test, y_pred=gp4.predict(X_test)): 0.3f}')
R2 Score Train =  0.993
R2 Score Test =  0.957
MAE Train =  0.238
MAE Test =  0.320

### Errors

errors = gp4.predict(X_test) - y_test
errors = errors.flatten()
errors_mean = errors.mean()
errors_std = errors.std()

fig, ax = plt.subplots(1, 2, figsize=(12, 6))
sns.regplot(x=y_test.flatten(), y=gp4.predict(X_test).flatten(), ax=ax[0])
sns.distplot(a=errors, ax=ax[1])
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--', label=f'$\mu$')
ax[1].axvline(x=errors_mean + 2*errors_std, color=sns_c[4], linestyle='--', label=f'$\mu \pm 2\sigma$')
ax[1].axvline(x=errors_mean - 2*errors_std, color=sns_c[4], linestyle='--')
ax[1].axvline(x=errors_mean, color=sns_c[3], linestyle='--')
ax[1].legend()
ax[0].set(title='Model 4 - Test vs Predictions (Test Set)', xlabel='y_test', ylabel='y_pred');
ax[1].set(title='Model 4  - Errors', xlabel='error', ylabel=None);

Again, the aim of this notebook was to give a flavor on how to use Gaussian processes for time series forecasting. I strongly encourage you to go to the references presented above to get a deeper and much more complete exposition of this subject.
